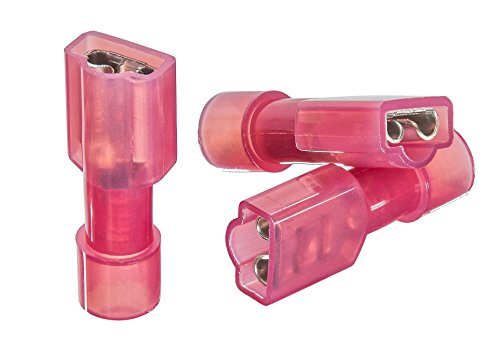

100 PCS Red Female Nylon Disconnect Spade Terminal, 22-16

100 PCS Red Female Nylon Disconnect Spade Terminal, 22-16 Gauge, Fully-Insulated Crimp Connector for Marine & Automotive Use - 0.187" Tin Plated Brass Receptacle
- HIGH QUALITY Red Nylon Spade Connectors Make Creating Removable Electrical Connections Simple and Easy
- Nylon Shell Provides a Semi-Flexible Protective Cover Helping Prevent Corrosion/Oxidization and Shorts
- Designed to connect wires of 22 through 16 gauge. Wire Range: 0.5-1.5mm², Max. Current 10A with a 0.187” Tin Plated Brass Receptacle
- Translucent Tubing Allows for Visual Inspection of Inserted Wiring for Accurate Crimping
- Package Quantity of 100 PCS Female Terminal. Color-Coded for Easy Size Selection
HIGH QUALITY NYLON DISCONNECT TERMINALS - Industry Standard Terminals for Electrical Wiring
Color Coded Crimp Connectors for Quick Assembly, Excellent for Marine, Automotive, and a Wide Range of Applications

Â Â Packaged Bag of 100 pcs.
Â Â Wire Range: #22 thru 16 AWG

PRODUCT FEATURES:
Â Â â€¢Â Â Red Spade Nylon Crimp Connectors with Internal 0.187" Tin Plated Brass Receptacle
Â Â â€¢Â Â Small "stop-tab" inside connector prevents over-insertion of wire
Â Â â€¢Â Â Fits 22-16 AWG Wire Range: 0.5-1.5mmÂ²
Â Â â€¢Â Â Translucent outer shell lets you view the wire and its exposed strands as you're inserting to ensure that it is positioned properly for crimping

VOLTAGE RATING: 300V Max. 105Â°C

Â Â â€¢Â Â Compliant with RoHS and CE Standards
Â Â â€¢Â Â Overall Dimensions: 0.80'' (20.2mm) L x 0.35'' (9mm) W x 0.20" (5mm) T

INSTALLATION INSTRUCTIONS:
Â 1. Turn off power before installing or removing connectors
Â 2. Strip wires 3/8" (1cm)
Â 3. Pre-twist for easy insertion into connector
Â 4. Push wires into connector(s)
Â 5. Crimp ferrule (metal tube) onto wires
Â 6. Crimp once using the crimping tool.

Amazon Protected Money-Back Satisfaction Guaranteed
Country USA
Brand MaxBrite
Manufacturer MaxBrite
ItemPartNumber NDC-RD100F187D
Size For Wire Range 22-16 AWG 0.5-1.5mm²
ReleaseDate 0000-00-00

Country	USA
Brand	MaxBrite
Manufacturer	MaxBrite
ItemPartNumber	NDC-RD100F187D
Size	For Wire Range 22-16 AWG 0.5-1.5mm²
ReleaseDate	0000-00-00

100 PCS Red Female Nylon Disconnect Spade Terminal, 22-16 Gauge, Fully-Insulated Crimp Connector for Marine & Automotive Use - 0.187" Tin Plated Brass Receptacle
