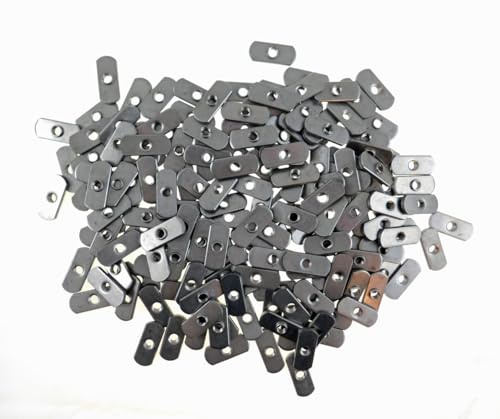

100 Pack 3/8-16 Spot Weld Nuts - Double Tab - ND 3324

100 Pack 3/8-16 Spot Weld Nuts - Double Tab - ND 3324
- This listing is for one hundred pieces. The ND weld nut is a dual-tab spot weld nut for applications requiring additional strength where tension is against the weld. Established as the standard slot fastener in the aluminum extrusion industry (economy t nut). The location of the twin-tabs enables the ND to be used in bridging corners and recessed areas. A precision pilot speeds location and provides a full thread engagement. The ND can use the same electrodes, equipment and settings used in production, thus eliminating setup and changeover time, thereby lowering in-place-fastener cost.
- Thread Size 3/8-16 Width (in) 5/8 Thickness (in) 9/64 Length (in) 1-1/2 Hole In Sheet (in) 0.438 Material C1010 High-Welding Quality, Low Carbon Steel Plain Finish Threads Unified Standard Class 2B ASME B 1.1-2003
- A 0.625" B 0.141" C 1.5" E 0.438" F 0.090"
Country USA
Brand usindustrialfasteners
Manufacturer usindustrialfasteners
ItemPartNumber ND3324X100
UnitCount 1
ReleaseDate 0000-00-00
