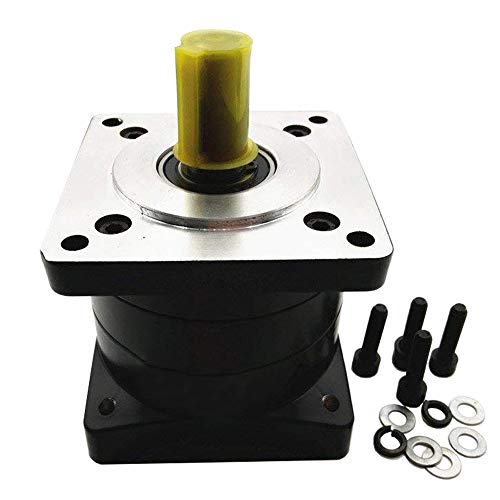

10:1 Ratio Planetary Reducer Stepper Speed Reducer for Nema 34 Stepper Motor DIY CNC Mill Lathe Router
Product Description
10:1 Ratio Planetary Reducer Stepper Speed Reducer for Nema 34 Stepper Motor DIY CNC Mill Lathe Router
Shipping listing
1pc  Planetary Reducer
Product description
Model: 86PX-10
Type: Planetary Reducer
Application: NEMA34 (Flange=86mm) Stepper Motor
Input Shaft: 14mm (keyway=5mm)
Output Shaft: 16mm
Speed Ratio: 10:1
Length: 112mm
Step distance precision: 5 %
Environment temperature; -40~+50 degree centigrade
Precision: less than 25 Arcmin
Material: Aluminum alloy shell
Advantages: Longevity, high precision, low noise
Insulation resistance: 100MOhm 500VDC
Withstand voltage: 500V AC1Min
Insulation grade:B
Warranty: One year warranty
Technical Specifications
