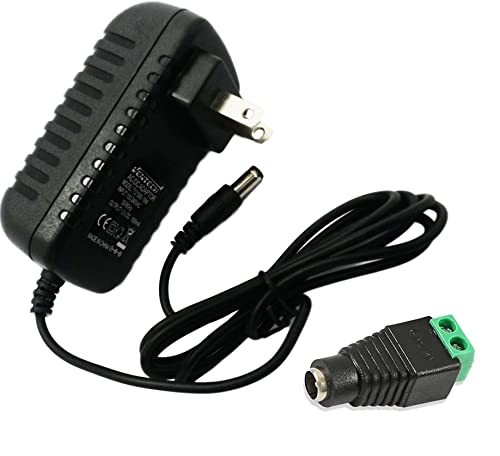

12V 1.5A Power Supply Adapter 100-240V AC to DC 12V Transformers, Switching Power Supply for 12V 3528/5050 LED Strip Lights 18W More Than Regular 12 Volt 1Amp 1a 2.1mm X 5.5mm Security CCTV VENTCH
Product Description
12V 1.5A Power Supply Adapter 100-240V AC to DC 12V Transformers, Switching Power Supply for 12V 3528/5050 LED Strip Lights 18W More Than Regular 12 Volt 1Amp 1a 2.1mm X 5.5mm Security CCTV VENTCH
IMPORTANT INFORMATION: Professional Security Adapter for better Current Stability (increases the lifetime of your camera)
Ppower supply 12V 1500MA
SPECIFICATIONS
12v AC adaptor 1.5A DC power supply 12V 1500 mA 18W
1. Over-Voltage Protection And Over-Current Protection
2. Short-circuit Protection, 100%Hi-pot & ATE(Chroma)Tested
3. 100%Burn-in under High, Ambient Temperature(45°C)
4. Low Ripple/Noise, MTBF Above 50000 HRS At 25°C
5. LVD authentication, Limited Power Sources
6. Working temperature: 0°C~40°C,10%~90%RH
12V AC adaptor 1.5A Parameters:
Output:12Voltage
Output current: 1.5A(Max.)
Output Power: 18W (Max.)
Input Voltage: 100-240V
Input frequency:50/60HZ
Inrush currently: 0.6A
Line regulation: 1%
Ripple &Noise: 1%
Load regulation: 5%
Effiency: 70%-85%
Operating temperature: 0～40°C
Storage temperature: -20°C～85°C
Over voltage protection: Auto Recovery
Over current protection: Auto Recovery
Short circuit protection: Auto Recovery
Load Regulation: 3%
Operating relative Humidity: 5°C-95% RH
With standing Voltage: AC 3000(mAX),5Ma (Max)
Insulation Resistance: DC 500,100M min
Application:
*CCTV security , door access, digital camera, etc.
*POS machine, mini printing machine, etc.
*electronic scale, flower pot and other electronic products.
*LED strip, LED lighting and etc.
Technical Specifications
