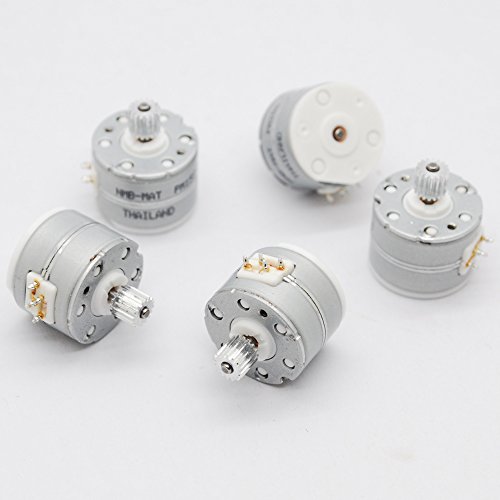

3 Pcs NMB 3V -5V DC 2 Phase 4 Wire Micro Stepper Motor Dia 15mm Step Angle 18 Degrees with Metal Gear PM15S-020-SKH4
Product Description
3 Pcs NMB 3V -5V DC 2 Phase 4 Wire Micro Stepper Motor Dia 15mm Step Angle 18 Degrees with Metal Gear PM15S-020-SKH4
- Motor: Micro 2 phase 4 wire Stepper motor
- Voltage: 3V-5V DC , Step angle: 18 degrees
- Motor size: * 15 MM x 11.3 MM
- The output shaft length: 6.5 MM (with an aluminum alloy gear: top diameter 4.45MM, modulo 0.25)
- Weight: 9 g
NMB 2 phase 4wire stepping motor, diameter 15MM, very beautiful
Voltage: 3V-5V DC
Motor diameter: 15 MM
Motor height: 11.3 MM
The output shaft diameter: 1.5 MM
The output shaft length: 6.5 MM (with an aluminum alloy gear: top diameter 4.45MM, modulo 0.25)
Motor: two-phase four wire
The step angle: 18 degrees
Weight: 9 G
Technical Specifications
