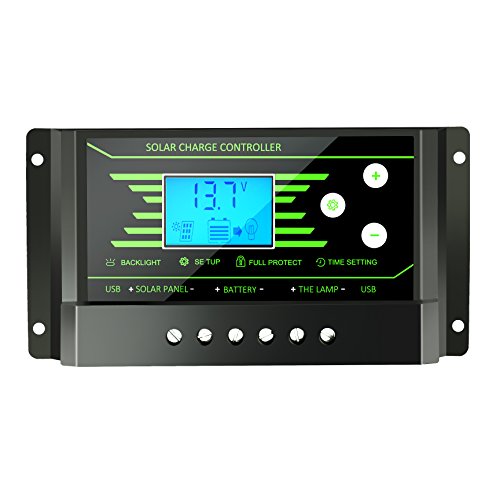

30A Solar Charge Controller PWM 12V 24V Auto with Back-Light LCD Display 5V Dual USB 30 amp Solar Regulator Charger Z30
Product Description
30A Solar Charge Controller PWM 12V 24V Auto with Back-Light LCD Display 5V Dual USB 30 amp Solar Regulator Charger Z30
Solar Charge Controller 30 amp's Product Features：
build-in industrial micro controller
Large screen LCD display ,charge and discharge parameter
can be adjusted ,with power off memory function
Screen with backlight,even more high-grade
Dual USB output ,the maximum current of 2.5A,to support
mobile phone charging
Fully 3-stage PWM charge management
Build-in-short-circuit protection,open-circuit
protection,reverse protection ,over-load protection Reverse current protection ,low heat production
DataSheet
Max Solar Panel Input: 360W(12V) ,Max 720W(24V)
Max output Power:120W
Equalization:14.4V
Float Voltage:13.7V(Default,adjustable)
Battery Low Voltage
Disconnect(LVD):10.7V(Default,adjustable)
Battery Low Voltage Re-connect(LVR):12.6V(Default,adjustable)
Charge reconnect:13V(Solar Panel)
Lighting Control Voltage: 8V(Solar Panel)
USB output:Dual USB output 5V/2.5A(Max)
Self-consume:
Technical Specifications
