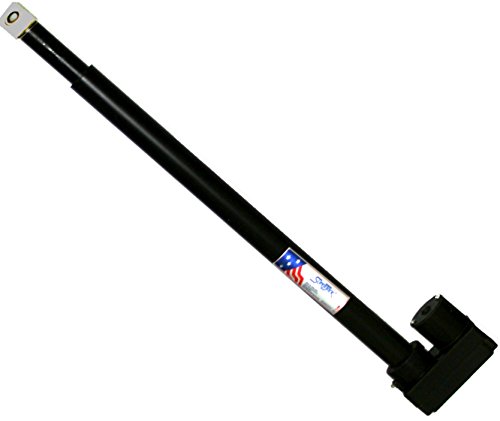

36" QARL Heavy-Duty SuperJack Satellite Actuator

36" QARL Heavy-Duty SuperJack Satellite Actuator
- This is our heavy-duty, 36-inch, 2-inch tube QARL SuperJack Linear Actuator used to move your c band dish so that it can track multiple satellites.
- It is powered by a 36V positioner (sold separately), can handle a maximum load of up to 1800lbs and is recommended for 300cm and 350cm dish sizes.
- This actuator can easily track satellites across 120 degrees of arc (e.g. from 40w to 139w).
- Uses super reed sensor, has a single screw adjustment limit, excellent water proofing and is painted charcoal black.
- For more details, satellite charts and programming please visit TVROSat.
NOTE: This 36-inch actuator (2016 model) is a stronger version of our previous model with a thicker tube and now includes accordion weather boot.

NOTE: Recommended for 300cm or 350cm diameter dishes.

FEATURES
â€¢36V motor operation
â€¢1800lbs maximum load
â€¢36-inch jack extension
â€¢2-inch outer tube
â€¢Single Screw Adjustment Limit
â€¢Super Reed Sensor
â€¢Superior anti-rust coating
â€¢Excellent water proofing

INCLUDES
â€¢36-inch SuperJack Actuator
â€¢Actuator clamp and swivel ball assembly
â€¢Nuts and Bolts

TECHNICAL
Input Voltage: 36V
Actuator Diameter: 2.0" (5.1cm)
Stroke Length: 36" (91.44cm)
Load Rating: 800kgs (1780lbs)
Environment: -40Â°C to 60Â°C
Shipping Details: 50"x8"x8" Rectangular Box (20 lbs)
Country USA
Brand TVROSat
Manufacturer SuperJack
Binding Electronics
ItemPartNumber 36-SuperJack
Model 36-SuperJack
Warranty 30-days.
UPCs 712324492187
EANs 0712324492187
ReleaseDate 0000-00-00

Country	USA
Brand	TVROSat
Manufacturer	SuperJack
Binding	Electronics
ItemPartNumber	36-SuperJack
Model	36-SuperJack
Warranty	30-days.
UPCs	712324492187
EANs	0712324492187
ReleaseDate	0000-00-00
