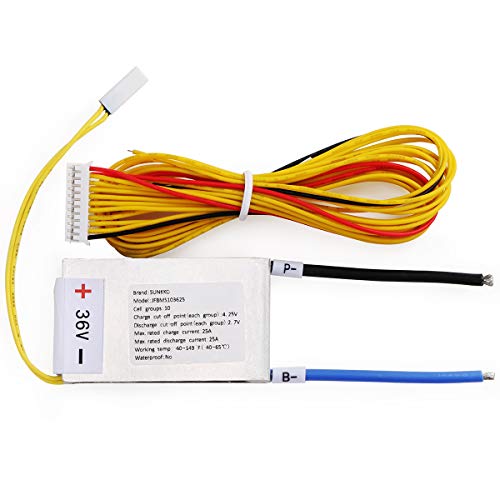

36V 10s Battery Management System(BMS) with 25A

36V 10s Battery Management System(BMS) with 25A Change/Discharge Current, DIY Lithium Battery Pack
- CHARGE PROTECTION: Sunkko BMS will keep the current in a stable state during the charging process and disconnect the battery pack from the charging process when it is fully charged. The BMS will also monitor every cell’s voltage and balance the cell groups to ensure they are charged equally;
- DISCHARGE PROTECTION: Sunkko BMS will monitor the discharge current and every cell’s voltage to make sure they are not over discharged. Due to the heat generated when the battery pack works and the different thermal dissipation properties of different battery packs, we suggest that you choose a BMS, with discharge current 50% higher than the actual discharge current;
- THERMAL DISSIPATION: The thickened aluminum plate greatly improves the thermal dissipation performance of the BMS;
- TEMPERATURE PROTECTION: Every Sunkko BMS is equipped with a temperature sensor. The BMS will stop the battery from being charged or discharged whenever the inner temperature of battery pack is higher than 149℉(65℃);
- EASY TO INSTALL: The B- and P- wires are already connected, making it much easier to install. (Attention: Sunkko BMSs do not have a C- wire.)
A Battery Management System(BMS) is used for protecting your lithium battery pack during charging and discharging.

Specification
Max. rated discharge current(optional): 25A
Max. rated charge current: 25A
Cell groups: 10
Voltage: 36V
Working temperature: -40~149â„‰
Temperature control cut-off point: 149â„‰
Physical dimension: 3.1x1.5x0.4"

Tips for electronic hobbyist:
1. It is mandatory that know what kind of rechargeable batteries you are using, Sunkko BMS is only designed for lithium-ion cells, NOT for LiFePO4 cells.
2. The internal resistance as well as full charge voltage of each single cells in the same battery pack should be as consistent as possible.
3. Choose BMS according to the number of series, voltage and discharge current of your battery pack.
4. Make sure you connect the positive and negative poles correctly during your battery pack building process.
5. According to the charge current of the BMS, you also need to prepare a specific battery charger.
Country USA
Brand SUNKKO
Manufacturer SUNKKO
Binding Misc.
Model JFBMS103625
UPCs 888107091424
EANs 0888107091424
ReleaseDate 0000-00-00

Country	USA
Brand	SUNKKO
Manufacturer	SUNKKO
Binding	Misc.
Model	JFBMS103625
UPCs	888107091424
EANs	0888107091424
ReleaseDate	0000-00-00

36V 10s Battery Management System(BMS) with 25A Change/Discharge Current, DIY Lithium Battery Pack
