Lsgoodcare 5.5MM x 2.5MM 10Pack Male DC Power Plug Power Jack Adapter Connector&5.5MM x 2.5MM Female Dc Power Jack 3Pin Panel Mount Connector&10Pack Dustproof Plug

Lsgoodcare 5.5MM x 2.5MM 10Pack Male DC Power Plug Power Jack Adapter Connector&5.5MM x 2.5MM Female Dc Power Jack 3Pin Panel Mount Connector&10Pack Dustproof Plug

Product ID: B078YNW3JZ Condition: New
Payflex: Pay in 4 interest-free payments of R256.00. Read the FAQ
Available in other options.
View variations
Variations
R 1,024
includes Duties & VAT
Delivery: 10-20 working days
Ships from USA warehouse.
Secure Transaction
VISA Mastercard payflex ozow

Product Description

Lsgoodcare 5.5MM x 2.5MM 10Pack Male DC Power Plug Power Jack Adapter Connector&5.5MM x 2.5MM Female Dc Power Jack 3Pin Panel Mount Connector&10Pack Dustproof Plug

  • DC Jack Connector Size : 5.5MM x 2.5MM (External Diameter x Internal Diameter ); Color : Black,Silver Tone
  • DC Plug Connector Plastic Material: High Temperature Resistant Nylon Material; Surface Plating: Silver Plating
  • 2.5MM Male DC Plug +2.5MM Female DC Panel Socket , Terminal Connector
  • DC Jack Plug Socket Connectors Application to Media Player, MP3 Player, MP4 Player, Audio-Video Equipment, AV Equipment, Note Book, Cellular Phone, Mobile Phone, Cell Phone, Smart Phone, PDA, Car Audio etc.

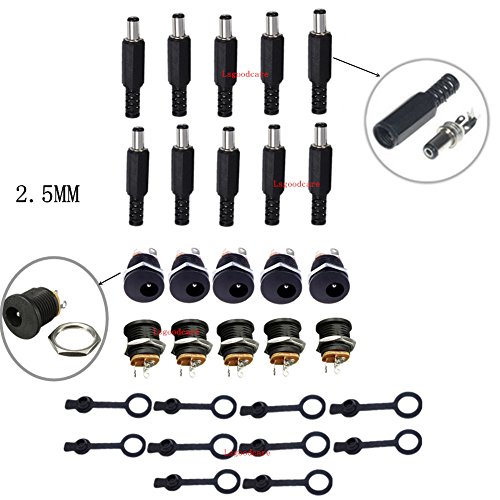

  • Package Include:　10 x DC Male Plug Connector＋ 10 x DC Female Screw Panel Socket + 10 x Dustproof Plug

Lsgoodcare 5.5MM x 2.5MM 10Pack Male DC Power Plug Solder Power Jack Adapter Connector +5.5MM x 2.5MM Female DC Power Jack 3Pin Panel Mount Connector+10Pack Dustproof Plug for Audio/Video/Phone/CCTV Ect

DC male & female Connectors are attached to a power cable using solder terminals, perfect for making a cable to a desired length or replacing a broken connector.

Application to Media Player, MP3 Player, MP4 Player, Audio-Video Equipment, AV Equipment, Note Book, Cellular Phone, Mobile Phone, Cell Phone, Smart Phone, PDA, Car Audio etc.

Solder to the solder terminals and connect a DC Barrel plug into the end.

5.5MM x2.5 MM DC Male Plug Specification:

Voltage rating ：30V AC,DC
Current rating：1A
Contact resistance：≤30mΩ
Insulation resistance：≥100MΩ
Withstand voltage ：50-60Hz. 500.60S
Work temperature：-40℃+85℃
The above information is measured with error 0.05-0.2

5.5MM x 2.5MM Female DC Panel Socket Specification

Total Size: approx 18 x 15mm/0.71" x 0.6"(L*Max.D)
Pins: 3-Pin; Thread Dia: approx 11mm
Material: Plastic, Metal ; Gender: Female Suitable Plug Size: 2.1x5.5mm
Temperature: -40~55 deg C
Actuating Force: 3-20N
Life: 5000 times
Rated Load: DC30V/0.5A
Insulation Resistance: >=100 Mohm

Package Include:　10 x DC Male Plug Connector＋ 10 x DC Female Screw Panel Socket + 10 x Dustproof Plug

Technical Specifications

Country
USA
Brand
Lsgoodcare
Manufacturer
Lsgoodcare
Binding
Electronics
PartNumber
DC-JACK-MF-3PIN-5.5-2.5
Model
DC-JACK-MF-3PIN-5.5-2.5
Color
5.5*2.5mm-MF
NumberOfItems
1
