Product Description

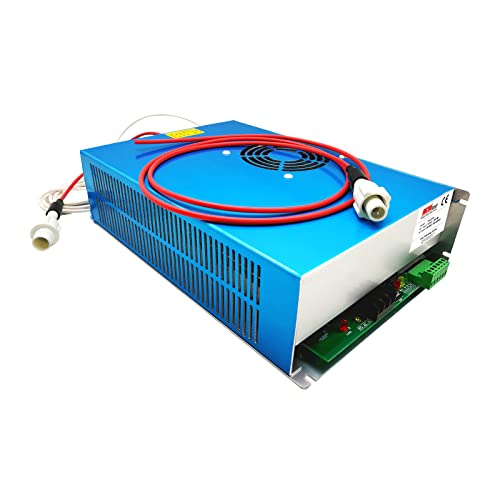

80W CO2 Laser Power Supply DY10 110V Free Duty Ship from US for RECI W1 Co2 Laser Tube

Be recommended to work with RECI 75W 80W 90W ( W1 ) laser tube
The power supply comes with TTL signal indication,water through signal indication and laser output indication.
Easy operation: The start and stop of laser can be easily controlled by TTL level.
Quick response speed and effect; High performance
Voltage: 110V

Specifications:

Model : DY10
Input Voltage: 100V
AC frequency: 47-440HZ
Max Input power: 440W
Max Input current: 3A
Max output voltage: DC 35KV
Max output current: DC 28mA
Efficiency greater than or equal to 90%(Full load)
MTBF greater than or equal to 10000 Hours
Response speed less than or equal to 1ms(Time from the TTL Signal is given to the output current up to 90% pre-setting current)
Withstand Voltage: Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure.
Environment Operating temperature:(-10-40)degree
Celsius,Relative humidity: less than or equal to 90%
Cooling: Forced air cooling(fan cooling)

Terminal Definition:

TH: Input Signal, Switch Light Control,High Level(greater than or equal to 3V)-Bright dipping,Low Level(less than or equal to 0.3V)-No Light Dipping
TL: Input Signal, Switch Light Control.High Level-No light Dipping,Low Level(less than or equal to 0.3V)-Bright Dipping
3WP*1: Input Signal, Switch Light Control,High Level(greater than or equal to 3V)- No light Dipping,Low Level(less than or equal to 0.3V)-Bright Dipping
G :Signal Ground, The foot must connected with laser machine's enclosure and ground properly.
IN*2 :Input Signal, Laser Power supply control terminal can use 0-5V Analog Signal Control,also can use 5V PWM Signal to Control 6 5V Output Power 5V,Max output Current 20mA
