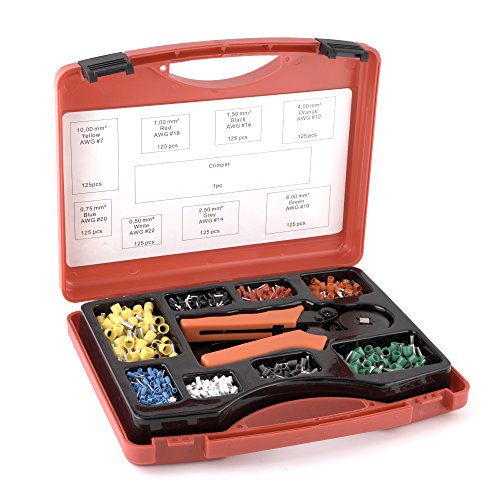

AFA Tooling 1,000 Piece Electrical Connector Kit with Wire Crimping Tool and Durable Carry Case, Ferrules Crimp

AFA Tooling 1,000 Piece Electrical Connector Kit with Wire Crimping Tool and Durable Carry Case, Ferrules Crimp

Product ID: B071Y7R71X Condition: New
Available in other options.
View variations
Variations
Sold Out

Product Description

AFA Tooling 1,000 Piece Electrical Connector Kit with Wire Crimping Tool and Durable Carry Case, Ferrules Crimp

Simply select the appropriate sized ferrule terminal for your sized wire. Then hold the tool so that the back (wire side) is facing you. Squeeze tool handles together and allow them to open fully. Place a provided terminal in the proper crimping chamber - the wire barrel should be at the back of the tool. Hold the terminal in position, and squeeze the tool handles together until ratchet engages just enough to hold the terminal - DO NOT deform the wire barrel at this point. Finally, insert the stripped wire into the open end of the crimp connect and hold the wire in place, squeeze the tool handles together until the ratchet releases. Allow the tool handles to open, and remove the crimped terminal. Inspect the terminal crimp.

Box content: Capacity

0,50 [square mm] white; A.W.G.: #22; max current: 4.5A-125 pcs

0,75 [square mm] blue; A.W.G.: #20 ; max current: 6.75A-125 pcs

1,00 [square mm] red; A.W.G.: #18; max current: 15A-125 pcs

1,50 [square mm] black; A.W.G.: #16; max current: 19A-125 pcs

2,50 [square mm] grey; A.W.G.: #14; max current: 27A-125 pcs

4,00 [square mm] orange; A.W.G.: #12; max current: 35A-125 pcs

6,00 [square mm] green; A.W.G.: #10; max current: 45A-125 pcs

10,00 [square mm] yellow; A.W.G.: #7; max current: 65A-125pcs

Technical Specifications

Country
USA
Brand
AFA Tooling Approved for Automotive
Manufacturer
AFA Tooling Approved for Automotive
Binding
Misc.
ItemPartNumber
1000_WireEnd_Sleeves_Crimper_Kit
UPCs
602401559707
EANs
0602401559707
