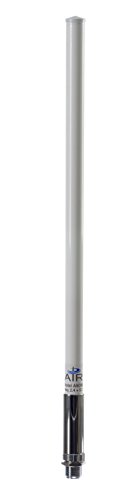

AIR802 Dual-Band Mesh Omni-Directional Antenna, 2.4 & 5 GHz Dual-Frequency, N Jack-Female Connector

The AIR802 model ANOM245XM-NF is a dual-band mesh omni-directional antenna. It provides uniform coverage in both the 2.4 GHz ISM band and the 5.1 to 5.850 GHz band. This is ideal for 801.11a/b/g/n/ac access points. The antenna is short in length at 14.75 inches (37.4 cm). The ANOM245XM can be installed indoors or outdoors. This model is sealed to prevent water penetration and is constructed with a N jack-male connector for direct attachment to a N plug-male connector.

Applications

• IEEE 802.11a/n/ac (5.150 - 5.850 GHz) Access Point / Router

• IEEE 802.11b/g/n/ac (2.4 - 2.485 GHz) Access Point / Router

• IEEE 802.11n/ac Access Point / Router

• 2.4 GHz or 5 GHz Wireless Video Surveillance

• Indoor or Outdoor

SPECIFICATIONS

Frequency: 2400 MHz and 5150 to 5850 MHz

Gain: 3.5 dBi at 2400 to 2485 MHz; 5.3 at 5.1 to 5.8 GHz

VSWR: < 1.5

Polarization: Vertical

Vertical Beamwidth: 2.4 GHz - 35°; 5.x GHz - 20°

Horizontal Beamwidth: 2.4 GHz = 360°; 5.x GHz = 360°

Impedance: 50 Ohms

Max. Input Power: 100 Watts

Weight: 7.54 ounces (214 grams)

Length: 14.75 inches (37.4 cm)

Connector: N Jack-Female

Material: White Fiberglass

Mounting: Direct Attachment

Temperature: -40° F to 176° F (-40° to 80° C)
