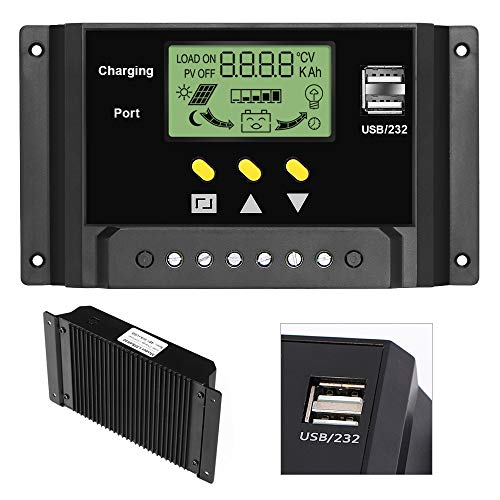

ALLPOWERS 30A Solar Charger Controller 12V/24V Solar Panel

ALLPOWERS 30A Solar Charger Controller 12V/24V Solar Panel Battery Intelligent Regulator with Dual USB Ports, LCD Display
- ☀Christmas Season Deal☀Rated Discharge Current: 30A; USB Output Voltage: Max. 5V/3A; Battery Voltage: 12V/24V auto. Adjustable power rate with dual USB ports; Fully 4-stage PWM charge management(Bulk, ABS, Float, Equalization)
- Functionality: The high efficiency series PWM charging mode extends battery life and improves the performance of the system; the power MOSFET is used as and electronic switch without any mechanical switches; It has a wide range of applicability and automatically identifies daytime/night
- Mutiple Electric Protection: Over-current and short-circuit protection, inverse connection protection, low voltage and overcharge protection
- Good Heat Dissipation: Dual mosfet reverse current protection, low heat production(ALL electronic components generate heat when they are running,it is better to shelter them for better heat dissipation, avoid direct sunlight exposure or damp place)
- Easy to use: Comes with a display that can clearly indicate the status and data, it can be conveniently switched modes and parameter configuration, suitable for home, industrial, commercial etc
"Your Satisfaction is our Highest Priority", contact us firstly if you have any question

The product can automatically manage the working of solar panel and battery in solar system. It is easy to set up and operate. For protecting the lifespan of your battery, once the voltage of the battery drop below 8V, the solar controller will turn off automatically (LCD will be unavailable at the same time).

Change the default setting of solar controller, requires:
1. Disconnect the solar panel
2. ensure the remain voltage of battery no less than 12V

Note:
<1>Avoid water, direct sunlight exposure, dusts(It must stay in cool and well-ventilated place to prevent from overheating)
<2>The regulator is suitable for lead-acid,lithium ions and LiFePO4 batteries. But for lithium ions and LiFePO4 batteries, you need to manually adjust the default setting for better pairing.
<3>Make sure your battery has enough voltage for it need to detect voltage and resistance from the battery prior to charging.
<4>Indoor use only: the working temperature of this controller is -35Â°C to +60Â°C, during hot sunny days, the temperature outside might go up to 60-75Â°C. Please do keep the controller stay in cool and well-ventilated place to maintain good heat dissipation. <5>When the battery voltage is too low, the controller will stop output(â‰¦ 8V, controller turn off itself, LCD is blank,â‰¦ 10.7V, 12V output ports are not available); after the solar panels charging, the battery will return to 12.6V. It is a natural to output(All values Ã— 2 when using 24V system).

Specification:
*Voltage: DC 12V/24V
*Rated Charge Current: 30A
*USB Output: 5V2A(Max.3A)
*Wire: 10AWG(16mmÂ²)
*Size: 5.98x 3.38x1.37inch
*Weight: 200g/0.44lb

Package List:
1 * Solar Charge Controller
1 * User's Manual
Warranty: 18-month product guarantee from ALLPOWERS

Country	USA
Binding	Wireless Phone Accessory
Brand	ALLPOWERS
Color	30A
Label	ALLPOWERS
Manufacturer	ALLPOWERS
Model	AP-OT-011-BLA
MPN	AP-OT-011-BLA
PartNumber	AP-OT-011-BLA
Publisher	ALLPOWERS
Studio	ALLPOWERS
ReleaseDate	0000-00-00
