Portable, self-priming diaphragm pump for transfer of clean liquids
Hand-operated lever adjustable to 12 different orientations
Delrin (POM) plastic constriction for high stiffness and low friction, with a Buna-N diaphragm for resistance to oils and solvents
Flow rate of 12 gpm at 90 strokes per minute
1" smooth hose inlet and outlet connections

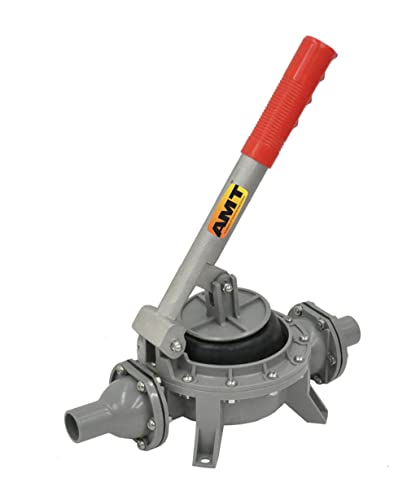

The AMT Pump HP01-99 hand diaphragm pump is a portable, hand-operated, self-priming diaphragm pump suitable for transfer of clean liquids. It is constructed of Delrin (POM, polyoxymethylene) plastic for high stiffness and low friction, with a Buna-N diaphragm for resistance to oils and solvents, and an aluminum handle for lightweight strength. This pump is capable of transferring up to 12 gallons of fluid per minute (gpm) with zero total head at 90 strokes per minute with temperatures up to 130 degrees F. It has a maximum lift of 12', a maximum head of 30', and its handle is adjustable to 12 different orientations. It has smooth 1" inlet and outlet hose connections, and ships fully assembled. This pump is suitable for clean liquid transfer operations in a wide range of commercial and industrial applications.
Pumps use mechanical action to move liquids, gases, or slurries (solids suspended in a liquid or gas). The mechanical action is categorized as either positive displacement (PD) or kinetic. PD pumps capture and release discrete amounts of flow into a chamber and then force it out. Some examples of PD pumps are fuel and oil pumps in cars, pumps in hydraulic systems, and bicycle pumps. Kinetic pumps move liquids, gases, or slurries by transferring energy from the pump's movement to the flow. They use an impeller to draw the flow in, add energy to the flow, and move it through a volute (a spiral funnel through which the flow moves), and into the system. Some examples of kinetic pumps include centrifugal (the most common pump in industrial applications), in-line pumps, sump pumps, and suction pumps. Energy sources for all types of pumps include wind power, manual operation, electricity, and gasoline or diesel fuel.
American Machine and Tool (AMT) manufactures centrifugal and diaphragm pumps. The company is headquartered in Royersford, PA.
This item, component, package or system is intended for professional use only, by persons knowledgeable of how to determine if it is chemically compatible with the liquid(s) to be pumped, the safe installation, use and maintenance of pressure-generating and pressure-containing devices and the safe installation, use and maintenance of electrically, pneumatically and hydraulically powered equipment.
1" Smooth Hose Inlet/Outlet
