AV Access Ture HDMI 2.0 Audio Extractor Splitter,4K HDMI to

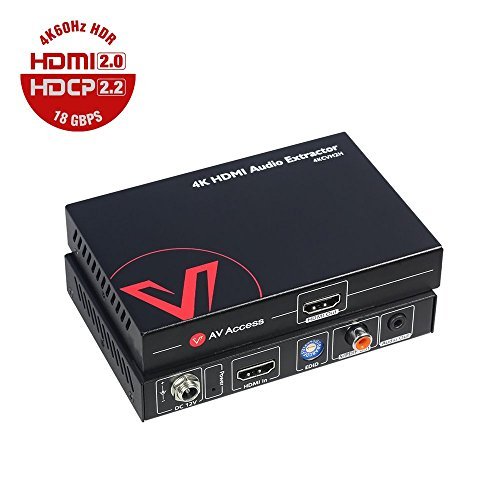

AV Access Ture HDMI 2.0 Audio Extractor Splitter,4K HDMI to HDMI+Audio Converter(SPDIF+3.5mm Stereo),Audio Decoder for Speaker Amplifier,EDID+CEC Control,HDR & Dobly Vision,Dolby Atmos & DTS:X
- 【Digital Audio Decoder】:supports HDMI source devices like Roku 4, Chromecast, Blu-ray/ DVD/ HD player, cable/satellite box, Amazon Fire TV, Apple TV, PS3/4, Xbox, HD camera, HD DVR without dedicated audio output.
- 【SPDIF】 Digital Audio output(2.1CH/5.1CH) and 3.5mm Stereo Audio output (2CH); SPDIF Digital Audio interface supports 5.1CH when your speaker or TV supports 5.1CH and please select EDID 0 default. 3.5mm Stereo Audio port supports LPCM only.
- 【HDMI 2.0 up to 4K@60Hz 10bit and HDCP 2.2 pass through】Support 18Gbps 4K HDR Signal transmission, Rotary switch with 16 EDID options; Built-in CEC control from HDMI out.
- 【Built-in】 Surge/ Lightning Protection; Superior ESD protection: +/- 8kV(Air-gap discharge ) +/- 4kV(contact discharge ); 1-Year Warranty (AV Access)
HDMI 2.0 Audio Extractor is not only to meet ideal image of the HDTV but also meet requirement of an extract audio from HDMI source. It outputs analog 2CH 3.5mm stereo or digital S/PDIF 2.1/ 5.1CH surround sound. Ideal for Google Chromecast, Xbox One, PS4, Sonos Speaker systems where you can simply extract audio from HDMI and drive it through 2CH stereo or AV receiver without connecting television. Additional, this audio extractor supports HDMI 2.0 4K@60Hz with high durability.

Package Contents

1x 4KCVH2H
1x Power Supply
1x Mounting Ear
1xUser Manual

General Information
Weight 0.23kg
Dimension 120mmx80mmx20mm
Power Supply DC 12V 0.5A power adapter
Power Consumption 2W
Input 1x HDMI In, HDMI 2.0 with 4K@60Hz 4:2:0 10bit,HDCP 2.2
Input Resolution 4096x2160@24/25/30/50/60Hz,3840x2160@24/25/30/50/60Hz,1080P,1080I~480P
Input Video Level 0.5-1.2 Vp-p
Pixel Clock 450MHz
Output 1xHDMI Out, HDMI 2.0 up to 4K@60Hz 4:2:0 10bit,HDCP 2.2
Output Resolution 4096x2160@60Hz,3840x2160@60Hz,1080P,1080I~480P
Video Impedance 100ohms
Support Audio Format Stereo Audio, LPCM DTS-HD 2.1 5.1,Dolby True HD
When audio input LPCM signal, digital SPDIF and 3.5mm Analog output supports 44.1/48/96/192KHz frequency
When audio input Dolby/DTS signal, digital SPDIF output supports 44.1/48/96KHZ frequency; but analog output does not support that.
HDMI Transmission
Supports 1080p 24bit HDMI signal via input HDMI cable 15m(49ft), output HDMI cable 15m(49ft)
Supports 4K@60Hz 4:2:0 10bit HDCP 2.2 HDMI signal via input HDMI cable 5m(16.4ft), output HDMI cable 5m(16.4ft).
Country USA
Brand v AV Access
Manufacturer AV Access
Binding Electronics
ItemPartNumber 4KCVH2H
Model 4KCVH2H
Color 01.HDMI 2.0 Audio Extractor[4KCVH2H]
ReleaseDate 0000-00-00

Country	USA
Brand	v AV Access
Manufacturer	AV Access
Binding	Electronics
ItemPartNumber	4KCVH2H
Model	4KCVH2H
Color	01.HDMI 2.0 Audio Extractor[4KCVH2H]
ReleaseDate	0000-00-00

AV Access Ture HDMI 2.0 Audio Extractor Splitter,4K HDMI to HDMI+Audio Converter(SPDIF+3.5mm Stereo),Audio Decoder for Speaker Amplifier,EDID+CEC Control,HDR & Dobly Vision,Dolby Atmos & DTS:X
