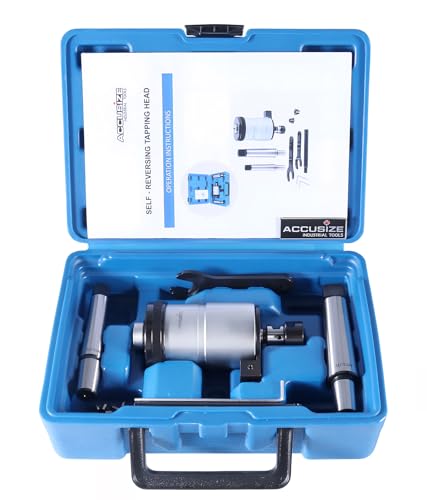

0-1/4'' Self-Reversing Tapping Head with JT6 Jacobs Taper, Precision Depth Control, for Drill Press, 2600-4002

Free shipping with 3 or more products in your cart
R 16,593
In stock
Duties, insurance and VAT included
Delivered in 10–20 working days —
Free shipping with 3 or more products in your cart
Secure checkout
Your payment is fully protected
Duties & VAT included
No surprise charges at the door
Tracked delivery
Track your order end to end
Returns support
30-day return window

Description

  • **Please do not use the self-reversing tapping heads as drill chucks.** Guaranteed depth control; within ±0.004''
  • Chatter-free clutch has positive engagement which allows for a smoother, more accurate operation and more rapid reversal
  • Radial Float is self-centering to compensate for hole center misalignment
  • Unique Double Spring mechanism produces automatic feed and cushion drive. There are 2 springs for the feed and 2 springs for the reversal
  • Pre-set torque control permits easy operation of tap brake torque control
  • Precision Depth Control: Guarantees depth accuracy within ±0.004'', ideal for precise tapping operations.
  • Chatter-Free Clutch: Offers positive engagement for smoother operation and faster reversal, enhancing tapping accuracy.
  • Radial Float Alignment: Self-centering feature compensates for hole center misalignment, ensuring precise tapping.
  • Double Spring Mechanism: Unique design with four springs provides automatic feed and cushion drive for efficient operation.
  • Pre-Set Torque Control: Facilitates easy tap brake torque control, enhancing the tool's versatility for different materials.
Applications & Features
  • Depth control
  • Top will advance 0.140'' ±0.004'' after machine spindle travel stops. Example: to achieve a top depth of 1.000'', set spindle stop at 0.860'' will advance an additional 0.140'' to 1.000'' depth NC Machine
  • Set torque as high as possible within safe limits of the top. NC machine cutting feed equals (top pitch x spindle RPM). Reverse feed equals 2 X (top pitch X spindle RPM).
  • Tapping Capacity in Steel: 0-1/4"(M2-M7)
  • Jacobs Taper : J-6
  • REC. Max Speed (RPM) : 1500RPM
  • Reverse Ratio :01:01.6
  • Body Diameter :2.215
  • Overall Length :5.118
  • Clockwise Compression: 0.197
  • ExpAnsion: 0.14
  • Counter Neutral :0.0023
  • Clockwise ExpAnsion :0.394
  • Uses Collets: I-116,117
  • With Arbors: MT1-JT6, MT3-JT6
  • Head comes complete with 2 collets
    • Technical Specifications
    Manufacturer
    Accusize Co., Ltd.
    Model
    2600-4002
    Height
    31 cm
    Length
    9 cm
    Width
    24 cm
