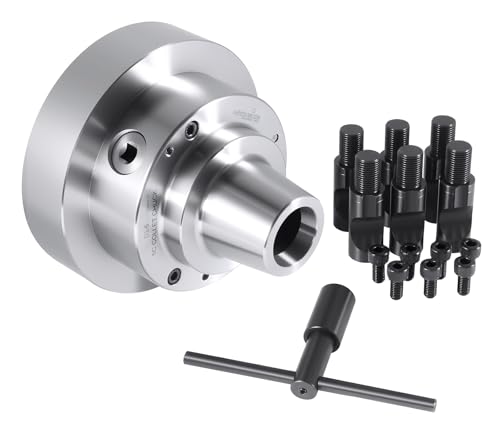

Accusize Industrial Tools 6-1/2'' 5C Collet Chuck with

Accusize Industrial Tools 6-1/2'' 5C Collet Chuck with Integral D1-6 Camlock Mounting, 7/8'' Stud, 0269-0016
- 5C 6-1/2" Collet Chuck with Integral D1-6 Camlock Mounting, Stud = 7/8", #0269-0016
- Outside diameter: 6-1/2"
- Spindle: D1-6 cam lock
- No. of stud: 6
- Diameter of stud: 7/8"
- Integral D1-6 camlock mount for quick, tool-free installation on lathes with D1-6 cam lock spindles, enhancing setup efficiency.
- Outside diameter: 6-1/2". Accommodates a wide range of 5C collets from 1/16" to 1-1/8" (round), 1/8" to 7/8" (hex), and 1/8" to 3/4" (square), supporting versatile machining tasks.
- Precision scroll and pinion mechanism mimics 3-jaw chuck operation, offering reliable grip and ease of use with included chuck key.
- Hardened and finish-ground scroll and pinion ensure sustained accuracy with a TIR of 0.0006", suitable for high-precision applications.
- High-speed capability up to 6000 RPM, making it ideal for a variety of operations, including turning, facing, boring, grinding, and milling.
Integrated D1-6 back mounting. Install on the machine in seconds, no machining required Can be used on any lathe with D1-6 cam lock mounting Customers don't need to do any work when received, just mount it on your machine spindle and go. Can use any size 5C collet Round collet: 1/16 ~ 1-1/8"; Hex collet: 1/8" ~ 7/8";Square Collet: 1/8" ~ 3/4" Scroll and pinion design just like 3-jaw chuck , operated with chuck key. Scroll & pinion precision machined and hardened Max. RPM 6000 TIR: 0.0006" 2-Pinion low profile type scroll & pinion are hardened and finish ground Use for turning, facing, boring, grinding and milling operations Includes wrench and mounting bolts

Country	USA
Brand	Accusize Industrial Tools
Manufacturer	Accusize Co., Ltd.
Binding	Misc.
ItemPartNumber	0269-0016
Model	0269-0016
Size	6-1/2", D1-6 CAMLOCK
UnitCount	1
UPCs	663566019505
EANs	0663566019505
ReleaseDate	0000-00-00

Accusize Industrial Tools 6-1/2'' 5C Collet Chuck with Integral D1-6 Camlock Mounting, 7/8'' Stud, 0269-0016
