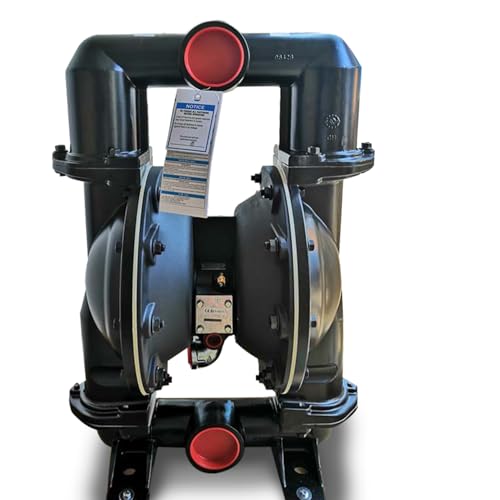

Air Operated Double Diaphragm Pump 1 inch Inlet/Outlet

Air Operated Double Diaphragm Pump 1 inch Inlet/Outlet Pneumatic Waste Oil Transfer Pump for Chemical DN25 35GPM Dual Diaphram Teflon by Aluminum alloy 115 PSI (3" 237GPM)
- [ INDUSTRY QBY4-25AL] material: aluminum body; santoprenediaphragm comes with an Extra Set of Diaphragms material: rubber, type: double diaphragm; operation type: pneumatic; inlet/outlet port size: 1 inch (25 mm) ; inlet port SINPT (8 mm) ; flow rate: 35 gpm; Maximum lift: 275 feet (84 m) ; suction: 23 feet (7 m) . Do not use in corrosive liquids.
- 【MAXIMUM HEAD】Air-Operated Double Diaphragm Pump have top quality, a double-acting seal that delivers better performance. 1/2 inch air inlet with NPT fitting uses standard shop air for easy operation.275.59FT/84M, Max Temp : 150 ℉, Max Pressure: 120 PSI.
- 【MAIN FEATURES】: no lubrication, medium and pump moving parts completely separated, conveying chemical waste oil liquid will not leak, low energy consumption, low air consumption, Modular design, low maintenance costs, long service life, good heat resistance.
- 【ADVANTAGES】: no spark, no liquid suction will not damage the pump, flow and head can be adjusted by valve switch size, suction can be adjusted by pressure, can be immersed in the medium work, high viscosity and low viscosity liquids can be extracted.
- 【WIDELY USE】The diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, paint, printing, paper making, water treatment, automotive etc.
Country USA
Brand emagene
Manufacturer Chasn
Model QBY4-25 1" AL+PTFE 35GPM
Color Black
Size 3" 237GPM
UnitCount 152
ReleaseDate 0000-00-00

Country	USA
Brand	emagene
Manufacturer	Chasn
Model	QBY4-25 1" AL+PTFE 35GPM
Color	Black
Size	3" 237GPM
UnitCount	152
ReleaseDate	0000-00-00

Air Operated Double Diaphragm Pump 1 inch Inlet/Outlet Pneumatic Waste Oil Transfer Pump for Chemical DN25 35GPM Dual Diaphram Teflon by Aluminum alloy 115 PSI (3" 237GPM)
