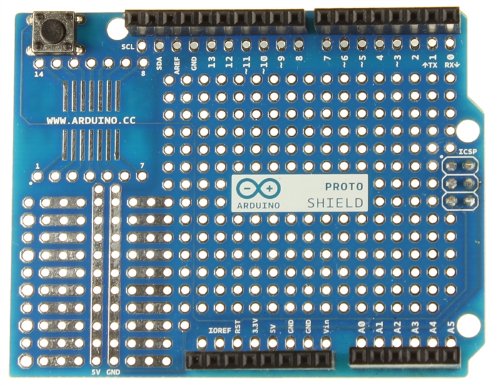

Arduino Proto Shield R3 Assembled

Arduino Proto Shield R3 Assembled
- Arduino R3 Pinout
- Reset button and ICSP connector
- 14 pin SMD footprint (50 mils pitch)
- 20 pin Through Hole footprint (100 mils pitch)
The Arduino Prototyping Shield makes it easy for you to design custom circuits. You can solder parts to the prototyping area to create your project, or use it with a small solderless breadboard (not included) to quickly test circuit ideas without having to solder. It's got extra connections for all of the Arduino I/O pins, and it's got space to mount through-hole and surface mount integrated circuits. It's a convenient way to make your custom circuit and Arduino into a single module.
Country USA
Binding Personal Computers
Brand Arduino Org
EAN 0610098743538
Label Arduino
Manufacturer Arduino
Publisher Arduino
Studio Arduino
ReleaseDate 0000-00-00
