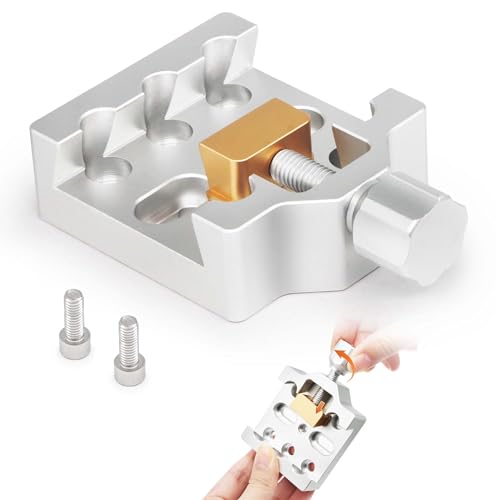

Astromania Middle-Sizes Dovetail with one Screw - for telescopes and Cameras

Product ID: B0140UB1AS Condition: New

Payflex: Pay in 4 interest-free payments of R375.25. Read the FAQ

R 1,501

includes Duties & VAT

Delivery: 10-20 working days

Ships from USA warehouse.

Secure Transaction

VISA Mastercard payflex ozow

Product Description

Astromania Middle-Sizes Dovetail with one Screw - for telescopes and Cameras

Simply screw the dovetail clamp onto your photo tripod or tripod head; and you can mount your telescope on the tripod
A generously dimensioned surface with 25 mm width presses the bar against the othe side of the clamp
Areal clamping - protects the accessories and provides a very stable connection; two drilled "but not threaded" in the middle with to accommodate screws up to 6mm in diameter; center-to-center screw hole spacing is from 27 to 43mm
7 bores are available for M6 and 1/4 inch screws; four M6 bores at 38 mm distance; one M6 bores lengthwise; one 1/4 inch tripod thread in middle with two drilled no threaded to fit screws up to 6mm diameter; center-to-center screw hole spacing: 37-43 mm
The clamp itself can be adapted to a mount; to the counterweight shaft or another dovetail bar; building a double connection; Clamps all GP level bars safely and reliable; especially high load capacity up to approx; 10 kg

Dovetail Clamp with 1 Brass Screw with Pressure Shoe for Mounting Vixen/celestron. With the quick coupling, you can attach your telescope or camera safely. The clamp can be screwed directly to photo tripods. It is especially suited for building double connections where a high load capacity is needed. Through the areal clamping, a high clamping power can be achieved, while your accessories are protected against unaesthetic pressure marks. Whether you want to clamp a telescope from Vixen, Skywatcher, Orion, Teleskop Service, you simply attach a GP level dovetail bar to the telescope. With most telescopes, this bar is already included. The bar is simply clamped with the pressure screw and fixed. You can also shift the telescope in the clamp for achieving an even better equilibrium. The clamp itself can be adapted to a mount, to the counterweight shaft or another dovetail bar, building a double connection.
