AtoZ Fabrication Tire Carrier Hinge Kit (Standard Spindle)

AtoZ Fabrication Tire Carrier Hinge Kit (Standard Spindle)
- Tire carriers built for up to 31" tires - for tires larger than 31" upgrade to the mega spindle option!
- Designed for 4-5" tall bumper bodies
- Designed for anyone wanting a super beefy tire carrier hinge assembly
- US-sourced high grade 4130 chromoly steel with CNC-machined surfaces for better welding and carrier rigidity
- 1.25" main spindle diameter

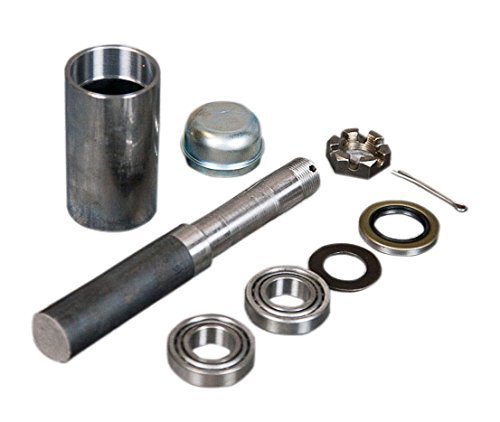

Making your own tire carrier? This is for you. The AtoZ Fabrication tire carrier hinge is the most used kit on the market. The standard spindles are good for up to 31" tires while the Mega Spindle is designed for larger tires or if you plan on putting accessories on your swing-away! The spindles fit into a hole you drill in your bumper, 1.25" for the standard spindle and 1.5" for the Mega spindle. This kit include all bearings, races, seals, and hardware needed for installation. Once you weld the spindle into your bumper and weld the 4" tall, 2.25" OD hinge tube onto your tire carrier you have a well sealed and very strong assembly. These can also be used for any fabrication project you have that needs a heavy duty pivot - there are hundreds of creative ways to utilize these kits. There is no warranty or liability implied on this product as we cannot control how it is used or installed. If you have a heavy tire/wheel combo or are adding options to your swing away then we highly recommend an upgrade to our Mega Spindles for just $25! All Mega Spindles are manufactured from 4140 Chromoly steel for un-matched strength! Kit includes 1 spindle (standard duty or mega duty), 1 CNC-Machined outer hinger tube (2.25" OD and 4" tall), 2 tapered roller bearing sets (1 upper and 1 lower), 1 bottom lip seal, 1 upper cap seal, 1 assembly hardware kit (washer, castle nut, cotter pin). BENEFITS OF THE MEGA-DUTY HINGE KIT: 1.5" spindle main diameter compared to 1.25" for standard spindles, 80% stronger w/ greater weld surface, US-sourced high grade 4130 chromoly steel with CNC-machined surfaces for better welding and carrier rigidity, Longer weld area to fit a 5" tall bumper, Weld both top and bottom machined radius to relieve stress risers.
Country USA
Brand AtoZ Fabrication
Manufacturer AtoZ Fabrication
ItemPartNumber 400-TCHNGKITS
Model 4350433033
Color Raw Steel
Size Standard Spindle
ReleaseDate 0000-00-00

Country	USA
Brand	AtoZ Fabrication
Manufacturer	AtoZ Fabrication
ItemPartNumber	400-TCHNGKITS
Model	4350433033
Color	Raw Steel
Size	Standard Spindle
ReleaseDate	0000-00-00
