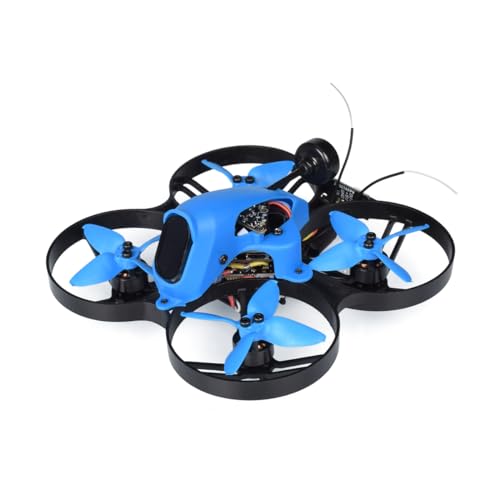

BETAFPV Beta85X 4K DSMX 4S Brushless Cine Whoop Quadcopter

BETAFPV Beta85X 4K DSMX 4S Brushless Cine Whoop Quadcopter with F4 V2 FC BLHeli_32 16A ESC Tarsier 4K Camera OSD Smart Audio 1105 5000KV Motor XT30 Cable for Micro Whoop Drone FPV Racing
- F4 V2 FC board has added extra 4 pluggable ports for ESC, VTX, RX and LED board, convenient installation and decreasing the dislocated PIN mounting.
- High performance STM32F405 processor FC boards and tuned BETAFPVF405(BEFH). Faster input signals with lower latency and higher update rate are reachable.
- Using single N-channel MosFETs on ESC board which have a lower inner resistance. It is dual MosFETs on the original BLHeli_32 ESC board.
- Soldering with 25V/220uf electrolytic capacitor, for protecting ESC board, reducing the defective rate caused by the instantaneous high voltage.
- Installed with Caddx Tarsier 4K camera with ND8 fliter which supports APP setting and switchable resolution setting of 4K, 2.7k, 1440P, 1080P.
- Upgraded 1105 motor from 6000KV to 5000KV, with a light weight but definitely will give you extreme power and speed. Motor comes with cable connectors.
- Durable and light enough frame is customized for the Beta85X. To increase its stability, we specially add an extra stiffener brace of carbon fiber. Whole drone no soldering or tinkering necessary.
- 450mAh 4S high rate battery is recommended by default. But pilot could also use their own batteries with battery strap. Optional and affordable.
- Weight: 88.6g (without battery)
- F405 V2 Flight Controller and 16A BLHeli_32 ESC
- Motors: 1105 5000KV with connector
- Props: 2" 4-Blades Props
- Camera: CADDX Tarsier 4K
- Canopy: Canopy for Tarsier 4K camera
- Receiver option: Frsky XM+ / DSMX / Futaba S-FHSS / Flysky / TBS Crossfire / PNP
- Recommend battery: 4S 450mAh Battery (Not including)
- 5.8G FPV antenna
- Flight time: 4min - 6min with 450mAh 4S battery
- CPU: STM32F405 (Overclock to 240MHz)
- Six-Axis: MPU6000
- Size: 26mm x 26mm, whoop mounting pattern
- Firmware version: BETAFPVF405(BEFH)
- OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
- Support BLHELI_32
- Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200
- Input voltage: 3-4S lipo
- Cotinue current: 16A
- Peak current: 19A
- Firmware target: BETAFPV-16A-32bit
- MCU: STM32F051K66
- Weight: 19.5g
- FOV: 4KF 2.8, FOV 150°(16/9), FPV FOV 165°（4/3）
- Lens: Dual lens 2.8 / 12Mega
- Image Sensor: 12M SONY sensor
- TV System: NTSC / PAL, can be changed
- Anti-Shake: Hardware anti-shake
- Scene Mode: Auto / Personage / Scenery / Defog
- Recording Timing Larm: OFF / 1mins / 3mins / 5mins / 10mins
- Horizontal Resolution: 1200TVL
- Image: 16:9 / 4: 3 (changeable)
- Camera OSD: Seperate OSD
- The camera tilt angle is switchable from 20 degree to 30 degree with ND8 fliter.
- Support 4S Power. Written for ESC's that utilize 32-bit MCU. With the increase in processing power, faster input signals with lower latency and higher update rate would be possible in BLHeli_32, such as Dshot1200!
- Using single N-channel MosFETs on ESC board, witch have a lower inner resistance. It is dual MosFETs on the original BLHeli_32 ESC board.
- Current sensor included.
- ESC is mounted on the frame by screws and connected with FC boards by cables.
- 1 * Beta85X 4K Whoop Quadcopter(4S)
- 1 * ND8 Filter for Tarsier 4K camera
- 1 * OSD Menu Board
Country USA
Brand BETAFPV
Manufacturer BETAFPV
Binding Toy
ItemPartNumber 00313-85x
UPCs 724779301822
EANs 0724779301822
ReleaseDate 0000-00-00

Country	USA
Brand	BETAFPV
Manufacturer	BETAFPV
Binding	Toy
ItemPartNumber	00313-85x
UPCs	724779301822
EANs	0724779301822
ReleaseDate	0000-00-00

BETAFPV Beta85X 4K DSMX 4S Brushless Cine Whoop Quadcopter with F4 V2 FC BLHeli_32 16A ESC Tarsier 4K Camera OSD Smart Audio 1105 5000KV Motor XT30 Cable for Micro Whoop Drone FPV Racing
