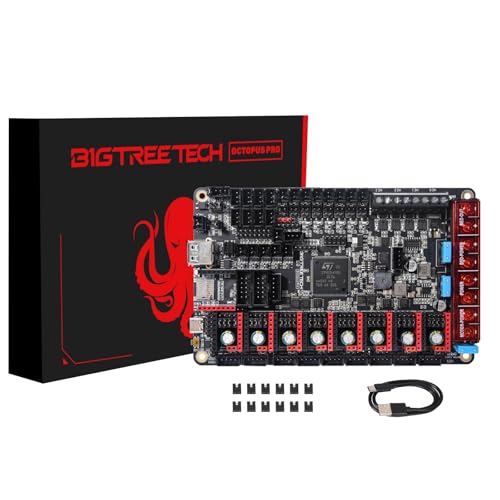

BIGTREETECH Octopus Pro V1.1 H723 32bit Control Board 550MHz

BIGTREETECH Octopus Pro V1.1 H723 32bit Control Board 550MHz Support 8 Axis Stepper Motor Drivers TMC2209 Klipper/Marlin High-Speed/Voltage Printing Support Raspberry-Pi Octprint Operating Systems
- Main Control Chip: BIGTREETECH Octopus pro v1.1 h723 board adopts the ARM Cortex-M7 series, STM32H723ZET6, main frequency up to 550MHz, 512KB flash, processing is more stable and fast.
- About Firmware: Supports Marlin and Klipper, compatible with BTT Pi V1.2/Pi 2 or CB1/CB2+Pi4b adapter, the best choice for Klipper high-speed/voltage printing, meet the individual need of DIY users, support operation systems Raspberry-Pi / Octoprint.
- Stepper Motor Upgraded: Support 8 axis powerful motor driver, support 5V level for stepper motor driver, better performance. Support max 60V motor input voltage to inprove motor power, reduce pulse losing. Support STEP/DIR/UART/SPI Mode, such as TMC2209,TMC2208, TMC5160T Pro stepper motor drivers.
- Onboard MAX31865: Support 2/4-wire PT100/PT1000 temperature measurement without welding (the soldering resistance can also support 3-wire PT100/PT1000 temperature measurement. Onboard Jst interface, support Canbus function.
- Expanded function interface: Support Bltouch, biqu microprobe v2.0, eddy v1.0 auto bed leveling sensor, resume printing, Wifi. RGB light, SFS V2.0 filament runout detection. Power shundown, Proximity sensor...etc. dsiaplay compatible with HDMI5 v1.2 touchscreen/TFT35/50/70 display. (Klipper touch mode, please choose BTT HDMI5 V1.2).
- Increase Motherboard Protector Level Conversion Chip: Convert 3.3V signal to 5V signal, improve driver performance, 8 isolation chips to protector the motherboard, avoid reverse drive insertion or short circuit, the main control chip is burnt.
- Attation: If you have any problems during use, please tell us at the first time. We will give you a satisfactory solution.
Country USA
Brand BIGTREETECH Direct
Manufacturer BIGTREETECH
Binding Unknown Binding
ItemPartNumber US-1020000408
Model US-1020000408
Color black
UnitCount 1
ReleaseDate 0000-00-00

Country	USA
Brand	BIGTREETECH Direct
Manufacturer	BIGTREETECH
Binding	Unknown Binding
ItemPartNumber	US-1020000408
Model	US-1020000408
Color	black
UnitCount	1
ReleaseDate	0000-00-00

BIGTREETECH Octopus Pro V1.1 H723 32bit Control Board 550MHz Support 8 Axis Stepper Motor Drivers TMC2209 Klipper/Marlin High-Speed/Voltage Printing Support Raspberry-Pi Octprint Operating Systems
