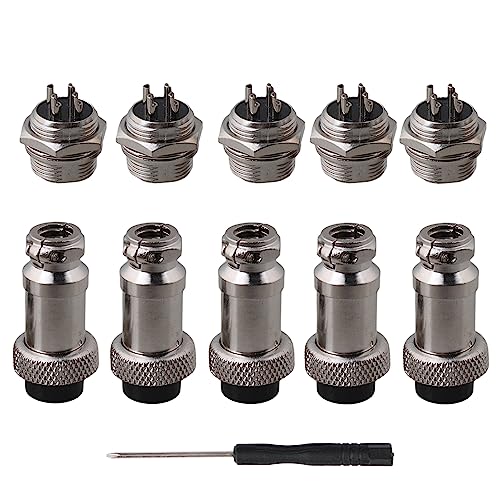

BQLZR Silver Aviation Plug 4-Pin 16mm GX16-4 Metal Male Female Panel Connector Pack of 5
Product Description
BQLZR Silver Aviation Plug 4-Pin 16mm GX16-4 Metal Male Female Panel Connector Pack of 5
- Size: Combined size: 46.5x21.5mm (length x diameter), male seat: 20.5x16mm (length x thread diameter), female head: 36*12.5mm (length x black bakelite diameter)
- Working Voltage: 250V.
- Working Current: 15A.
- Withstand Voltage: 1500V AC
- mount the male connector to chassis,the hole size is 5/8 inch or 16mm
- Includes both ends - male panel/bulkhead mount and female socket cable ends.
- Wiring mode:connect wires to the pins of the female, and then connect corresponding wires to the pins of the male
"Note: The color of the item may vary slightly due to photography and your own computer
Specification:
Contacts Pin Number: 4
Working Voltage: 250V.
Working Current: 15A.
Withstand Voltage: 1500V AC
Insulator Resistance: 2000 Ohm
Weight: 105g
Package include:
5X Aviation Plug Metal Connector "
