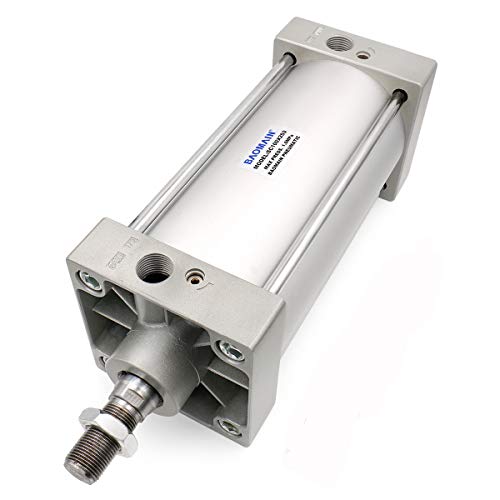

Baomain Pneumatic Air Cylinder SC 100 x 250 PT1/2; Bore: 4",

Baomain Pneumatic Air Cylinder SC 100 x 250 PT1/2; Bore: 4", Stroke: 10"; Screwed Piston Rod Dual Action
- Port size: PT1/2, Bore: 100mm, Stroke: 250mm
- Action Type: Double Acting; Rod Type : Single Rod
- Max. theoretical force: 700Kgf; Max Pressure: 1.0 MPa
- Piston port size: M20X1.5; Weight: 4350g;
- Working Temp. Range is -20℃ ~ +80 ℃(-4℉ ~ 176℉);
Features:
100mm bore and 250mm stroke, double action and single rod,Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safely and with low noise.
With self-lubricating bearing, the piston rod is lubrication free.
It is widely applied to the automatic equipment in light industry, chemical industry, textile industry, electronic and machinery industry.
If you need accessories, please search ASIN: B077MTV81S; B077NG8777 to find.
Country USA
Brand Baomain
Manufacturer CHLED
Binding Tools & Home Improvement
ItemPartNumber SC100X250
Model SC100X250
Color Silver
UPCs 711811434792
EANs 0711811434792
ReleaseDate 0000-00-00

Baomain Pneumatic Air Cylinder SC 100 x 250 PT1/2; Bore: 4", Stroke: 10"; Screwed Piston Rod Dual Action
