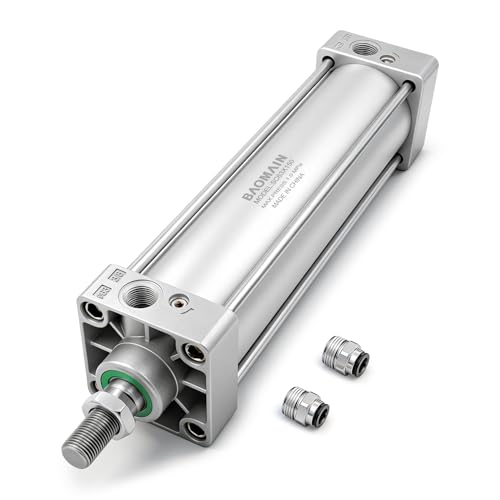

Baomain Pneumatic Air Cylinder SC 63 x 150, PT 3/8 Port,

Baomain Pneumatic Air Cylinder SC 63 x 150, PT 3/8 Port, 2-1/2" Bore, 5.9" Stroke, Single Rod Double Acting, M16x1.5 Threaded Rod, with 2X Push-in Fittings
- 【2-1/2" Bore & 5.9" Stroke】This standard pneumatic cylinder offers a 2-1/2 inch (63mm) bore and a 5.9 inch (150mm) stroke. Its double-acting, single-rod design ensures consistent force in both forward and return motions
- 【M16x1.5 Threaded Piston Rod】The piston rod features an M16x1.5 male threaded end for a secure and standardized connection. The integrated self-lubricating bearing allows for maintenance-free operation
- 【PT 3/8 Port & 2x 8mm Fittings】Equipped with a PT 3/8 inch air port and includes 2 push-in fittings compatible with 8mm outer diameter tubing, enabling quick and easy installation into your pneumatic system
- 【Durable Aluminum Alloy】Made from high-strength aluminum alloy, this cylinder is lightweight, corrosion-resistant, and built for reliable performance in various working environments
- 【For Industrial Automation】Ideal for automated systems in light industry, packaging, material handling, and machinery applications where compact and dependable pneumatic actuation is required
Features:
63mm bore and 150mm stroke, double action and single rod,Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safely and with low noise.
With self-lubricating bearing, the piston rod is lubrication free.
It is widely applied to the automatic equipment in light industry, chemical industry, textile industry, electronic and machinery industry.
If you need accessories, please search ASIN: B077N6ZKT2; B077MWTQHS; B077N85BQG; B077N5V3L9 to find.
Country USA
Brand Baomain
Manufacturer CHLED
Binding Tools & Home Improvement
ItemPartNumber SC 63X150
Model SC 63X150
UPCs 711811434068
EANs 0711811434068
ReleaseDate 0000-00-00

Country	USA
Brand	Baomain
Manufacturer	CHLED
Binding	Tools & Home Improvement
ItemPartNumber	SC 63X150
Model	SC 63X150
UPCs	711811434068
EANs	0711811434068
ReleaseDate	0000-00-00

Baomain Pneumatic Air Cylinder SC 63 x 150, PT 3/8 Port, 2-1/2" Bore, 5.9" Stroke, Single Rod Double Acting, M16x1.5 Threaded Rod, with 2X Push-in Fittings
