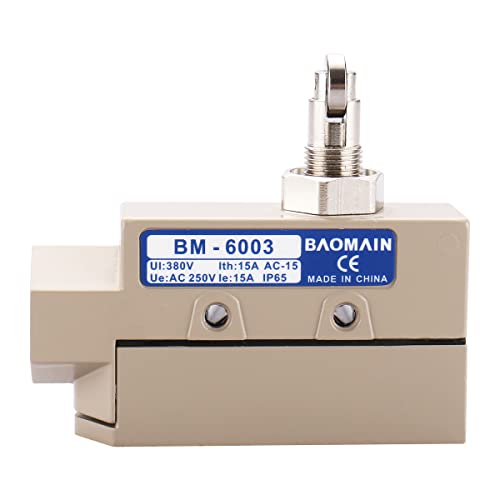

【Direct OEM Replacement】Ideal replacement for TZ-6/TZ-6003 style limit switches commonly found in push/pull or roll-up doors of various air curtain brands.
【High-Load 15A/250V Switching】Capable of handling high inrush currents from motors and fans reliably. The sealed TM micro switch minimizes arcing for extended electrical life and safe operation.
【IP65 Rated & CE Certified】Dust-tight and protected against water jets. Ideal for wet and oily environments.
【Includes Installation Accessories】Contains M20x1.5 cable gland, rubber boot, metal washer, and nut for a secure, sealed connection.
【Industrial Grade Durability】Features a heavy-duty sealed housing designed for long-term reliability in harsh industrial environments.
Type of the head: Cross Roller Plunger
Power of starting: 350
Power of release: 115
Switching position (mm): 0.5mm
Rated current In(Ð): 15A active load. 5A inductive load
Insulation resistance: 100
Rated voltage: 230V
IP code: IP65
Section of the power supply conductor: up to 1.5mm2
