Baxnore High Precision Automatic Slide Table SPX415L X Axis

Baxnore High Precision Automatic Slide Table SPX415L X Axis Linear Motion Stage with Stepper Motor Drive for CNC Machinery Laboratory Equipment Industrial Automation
- [ADVANCED MOTION CONTROL] Experience ultra-smooth operation with our PI control algorithm that minimizes vibration and noise while maintaining low heat generation. The system delivers exceptional 15μm single-phase positioning accuracy and ±1.5μm repeatability, ensuring precise movements for demanding applications.
- [FLEXIBLE MOTOR INTEGRATION] Designed for versatility, this stage automatically adapts to various 2-phase stepping motors (4/6/8 wire configurations) with intelligent parameter adjustment. Select from 16 current levels up to 2.2A peak output for optimal performance across different motor types and applications.
- [COMPREHENSIVE SAFETY FEATURES] Protected by multiple safety mechanisms including overvoltage/undervoltage alarms, phase current overcurrent protection, and motor phase open-circuit detection. These features prevent damage and ensure reliable operation in industrial environments.
- [EASY INSTALLATION & OPERATION] The compact 40×40mm steel platform with electroless plating offers 15mm travel distance and supports 10kg loads. Direct signal connection is enabled through constant current input functions for pulse, direction and enable terminals-no external resistors required.

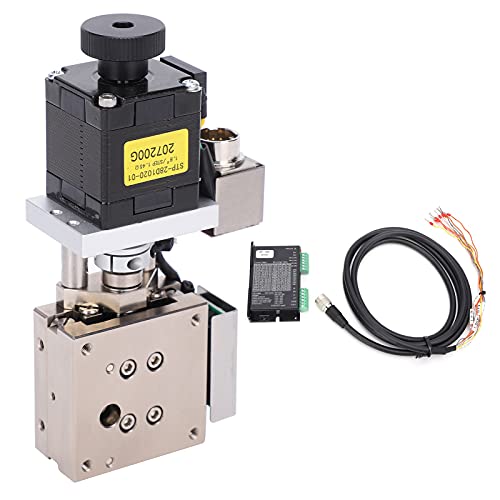

- [HIGH-PERFORMANCE SPECIFICATIONS] Delivers professional-grade performance with 10mm/s maximum speed, 3μm straightness, and 15μm parallelism. Compatible with DC48V power and 300KHz input signals, this complete package includes the slide table, data cable, and drive for immediate use in automation systems.
Country USA
Brand Baxnore
Manufacturer Baxnore
ItemPartNumber Baxnore7q31aitdp4
UnitCount 1
ReleaseDate 0000-00-00

Country	USA
Brand	Baxnore
Manufacturer	Baxnore
ItemPartNumber	Baxnore7q31aitdp4
UnitCount	1
ReleaseDate	0000-00-00

Baxnore High Precision Automatic Slide Table SPX415L X Axis Linear Motion Stage with Stepper Motor Drive for CNC Machinery Laboratory Equipment Industrial Automation
