Bourns Dual Mini Guitar Potentiometer w/ Push Pull Switch,

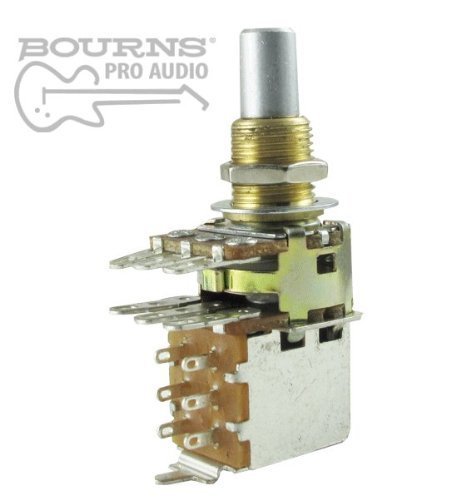

Bourns Dual Mini Guitar Potentiometer w/ Push Pull Switch, 250K Audio, Solid Shaft
- Bourns Model PDB183-GTR21 Guitar Potentiometer with Push-Pull Switch. Used for Split-Coil Pickup Switching
- Bourns Model PDB183-GTR21 Guitar Potentiometer with Push-Pull Switch allow the guitarist multiple functions utilizing a single control such as split-coil switching for humbucking (double-pole) pickups or stacked single-coil pickups, active electronics activation, and pickup phase switching.
- Bourns Model PDB183-GTR21 Guitar Potentiometer with Push-Pull Switch is designed to allow the guitarist switching capability and volume or tone controls with a single 18 mm package size potentiometer. The potentiometer is designed with a single shaft that is used to activate the Double-Pole, Double-Throw (DPDT) switch and to adjust the potentiometer. The DPDT switch can be wired for various switch functions.
- Carbon element, DPDT push-pull switch, 1/4" Solid Shaft, 3/8" Bushing Width, 3/8" Bushing Length, Tolerance: ±20 %, Power Rating: 0.1 watt
- Bourns Series Number: PDB183-GTR21
Bourns Model PDB183-GTR21 Guitar Potentiometer with Push-Pull Switch. Used for Split-Coil Pickup Switching

Electric guitar manufacturing is a multi-billion dollar industry with major manufacturers established worldwide. From the introduction of the first mass-produced electric guitar in 1950, guitarists have been mesmerized with advances in technology and the wide array of after- market parts commercially available for guitar upgrades. Specialty products such as Bourns Model PDB183-GTR21 Guitar Potentiometer with Push-Pull Switch allow the guitarist multiple functions utilizing a single control such as split-coil switching for humbucking (double-pole) pickups or stacked single-coil pickups, active electronics activation, and pickup phase switching. This application note addresses utilization of the PDB183-GTR21 to enable split-coil pickup switching in electric guitar humbucking pickups.

Bourns Model PDB183-GTR21 Guitar Potentiometer with Push-Pull Switch is designed to allow the guitarist switching capability and volume or tone controls with a single 18 mm package size potentiometer. The potentiometer is designed with a single shaft that is used to activate the Double-Pole, Double-Throw (DPDT) switch and to adjust the potentiometer. The DPDT switch can be wired for various switch functions.

Features:
Carbon element
DPDT push-pull switch
1/4" Solid Shaft
3/8" Bushing Width, 3/8" Bushing Length
Tolerance: Â±20 %
Power Rating: 0.1 watt

Bourns Series Number: PDB183-GTR21
Country USA
Brand Bourns
EAN 0609722126076
IsAutographed
IsMemorabilia
Label Bourns
Manufacturer Bourns
Model Bou-2516
MPN PDB183-GTR22-254A
PartNumber PDB183-GTR22-254A
Publisher Bourns
Studio Bourns
ReleaseDate 0000-00-00

Country	USA
Brand	Bourns
EAN	0609722126076
IsAutographed
IsMemorabilia
Label	Bourns
Manufacturer	Bourns
Model	Bou-2516
MPN	PDB183-GTR22-254A
PartNumber	PDB183-GTR22-254A
Publisher	Bourns
Studio	Bourns
ReleaseDate	0000-00-00

Bourns Dual Mini Guitar Potentiometer w/ Push Pull Switch, 250K Audio, Solid Shaft
