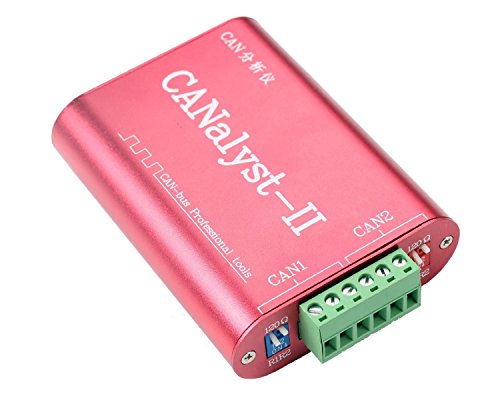

CANalyst-II USB to CAN Analyzer CAN-BUS Converter Adapter

CANalyst-II USB to CAN Analyzer CAN-BUS Converter Adapter Support ZLGCANpro
- 80M frequency of high-performance 32-bit processor with 512K flash, 128K SRAM memory space to cache information CAN 6000's.
- support advanced online programming (online writing FLASH) CAN configuration information stored in real time and status.
- 10K ~ 1M baud rate range of any configuration, with baud rate calculation configuration tools, one-click configuration.
- 10K ~ 1M baud any frame measuring range, one key-frame test and configure the baud rate.
- Typical applications: PC or laptop's USB interface to send and receive CAN bus network; the fast CAN network data collection, data analysis; CAN bus-USB gateway; USB interface to CAN network interface; extend the length of the CAN bus network communications; Industrial CAN network data monitoring; CAN-bus network debugging and testing; CAN2.0A/2.0B packet analysis; iCAN protocol analysis; DeviceNet protocol analysis; CANopen protocol analysis; SAE J1939 protocol analysis.
Support CAN2.0A and 2.0B underlying protocol analysis,SAE J1939 protocol analysis, CANopen protocol analysis,DeviceNET protocol analysis,analysis iCAN protocol and user-defined protocol analysis
Performance and technical indicators:
USB and CAN bus protocol conversion
USB-CAN-1(x)has a channel CAN interface;
USB-CAN-2(x) with 2-channel CAN interface
CANalyat-II analyzer has two CAN interfaces
USB interface supports USB2.0 compatible with USB1.1
support CAN2.0A and CAN2.0B agreement,supports standard and extended frames
support bidirectional transmission,CAN transmit, CAN receiver
supports data frame, remote frame format
CAN controller baud rate between 10Kbps-1Mbps optional software configuration
USB-CAN-(x)A series of products:CAN bus interface is not isolated
USB-CAN-(x)B/C series:CAN bus interface with high-speed magnetic coupling isolation,isolated DC-DC power supply
CANalyst-II analyzer:CAN bus interface with high-speed magnetic coupling isolation, isolated DC-DC power supply
Maximum flow: each CAN channel for receiving the 8000/s, and send to 8000/s internal CAN send buffer capacity of 1000 per channel
(sending failed automatic retransmission) CAN receive buffer capacity of 2500 per channel
USB bus powered directly, eliminating the need for an external power supply USB-CAN-(x) A series of products, the isolation module
insulation voltage: not isolated
USB-CAN-(x)B Series products, isolation module insulation voltage:1000V
USB-CAN-(x)C series products, isolation module insulation voltage:2500V
CANalyst-II analyzer,isolation module insulation voltage:2500V
Compatibility: library similar to Luminary the company ZLG-USBCAN interface adapter
Operating Temperature: -20 ~ 85 â„ƒ
Package:
1 x USB to CAN Analyzer
