CNCShop Spindle Motor CNC Spindle Motor 2.2kw Water Cooled Spindle Motor ER20 Collet Chuck(2.2KW Water Cooled Spindle Motor)

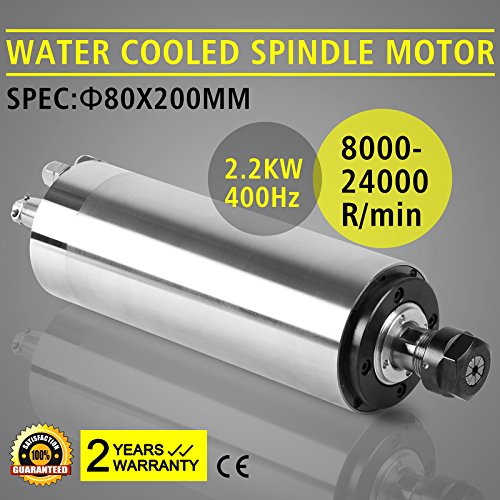

2.2KW Water Cooled Spindle Motor

Introduction

Unlike other selling low quality spindle at doubtful low price, this is a high quality Spindle with stainless steel 304 casing and the Germany made ball bearing.New upgraded with adopt Germany imported bearing: three times useful time than ordinary spindle motor. More speed: 8000-24000 R/min. More precis collet: ER20(4mm,6mm,8mm,12mm,12.7mm) Runout off: less than 0.005mm. Pass ISO9001 quality certification which means this item is the top quality item.

Technical Parameters

Spec:80×200 mm (Diameter:80mm×Length:200mm)

Power: 2.2 KW

Voltage: 220V-250V

Frequency: 400 Hz

Speed:8000-24000 R/min

Water Cooling

Runout off: less than 0.005mm

Grease Lubrication

Feature

This spindle motor adopts Germany imported bearing which can make it use for three times longer useful time than ordinary spindle motor.

In extremely high speed working environment, ordinary bearing can not ensure this high rotate speed for using for long time.

Our Germany imported bearing can make spindle motor three times longer useful time than ordinary spindle motor.

The cost for Germany Imported Bearing is more than 150 Dollar than ordinary bearing.

MORE SPEED: 8000-24000 R/min.MORE PRECISE.

Collet: ER20(4mm,6mm,8mm,12mm,12.7mm) Runout off: less than 0.005mm.

ISO9001 quality certifications which means this item is the top quality item.
