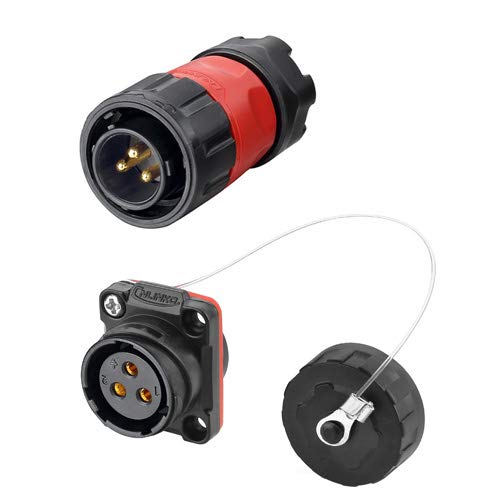

CNLINKO 3 Pin Power Industrial Circular Connector, Male Plug & Female Panel Mount Receptacles Socket Jack, Outdoor Waterproof IP67, AC DC
Product Description
CNLINKO 3 Pin Power Industrial Circular Connector, Male Plug & Female Panel Mount Receptacles Socket Jack, Outdoor Waterproof IP67, AC DC
- 3 cores for power and signal, desgined for diversity of industrial demand
- Rated current 20A, operation voltage 500VAC, outdoor, waterproof IP67
- Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, effective response to temperature changes in current
- PBT material of the protective housing, with characters of fire safety, compression, anti-explosion and anti-deformation
- 1/4 Quick bayonet coupling, simple operation, easy installation
CNLINKO USA is the only authorized Amazon retailer for CNLINKO brand connector products, with complete warranty.
Selling Items Model Number:
Plug: YM-20-C03PE-01-001
Socket: YM-20-J03SX-01-001
Cable specification: 2.5m㎡--4m㎡/14-12 AWG
Diameter range: Φ8mm～Φ12mm
Contact diameter × number: Φ2.7x3
Rated Current (A): 20A
Operating voltage (AC.V.rms): 500V
Contact resistance
Technical Specifications
