COATS TIRE MACHINE /CHANGER AIR VALVE foot controlled switch 8181986 many models

Product ID: B01MT6Y3RF Condition: New

Sold Out

Product Description

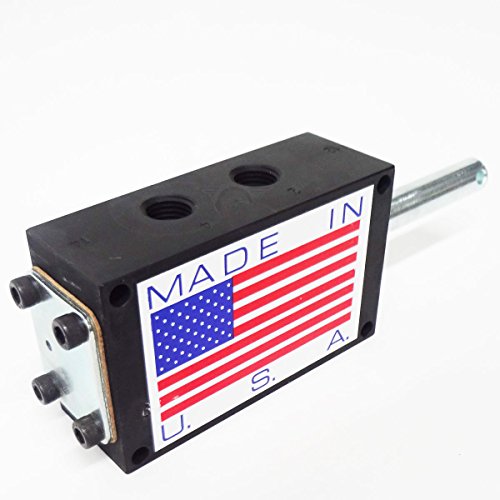

This is the 4-Way Air Control Valve found on many Coats Tire Changers.
This is the valve that is operated by the foot pedals in the front and side of the machine on many model Coats tire changers.
This valve can be in all foot pedals in the machine (table top wheel clamping jaw controls, Bead breaking arm control, and on all air machine it controls turntable rotation as well)
This valve is found in Coats tire changer models: 5030A 5030E 5035A 5035E 5040A 5040E 5050A 5050E 5060E 5060EX 5060A 5060AX 6060AX 6060EX 6065A 6065AX 6065E 6065EX 7050A 7050X 7050AX 7055EX 7060AX 7060Ex 7065AX 7065EX 7660AX 7660EX 7665AX 7665EX

NOTE: COATS MACHINES CAME WITH TWO DIFFERENT STYLE FOOT PEDAL AIR CONTROL VALVES. SOME HAD INTERNAL CENTERING SPRINGS AND SOME DID NOT. THIS LISTING IS FOR THE VALVE WITHOUT ANY CENTERING SPRING. PLEASE READ BELOW TO ASSIST IN DETERMINING IF YOU HAVE A SPRUNG OR NON SPRUNG VALVE BEFORE ORDERING. STEP 1 -REMOVE THE BAD VALVE FROM THE MACHINE STEP 2 -PULL THE PLUNGER IN AND OUT OF THE BODY OF THE VALVE. -IF IT MOVES FREELY WITHOUT RESISTANCE THEN YOU HAVE A NON SPRING VALVE AND THE VALVE IN THIS LISTING WILL WORK.
