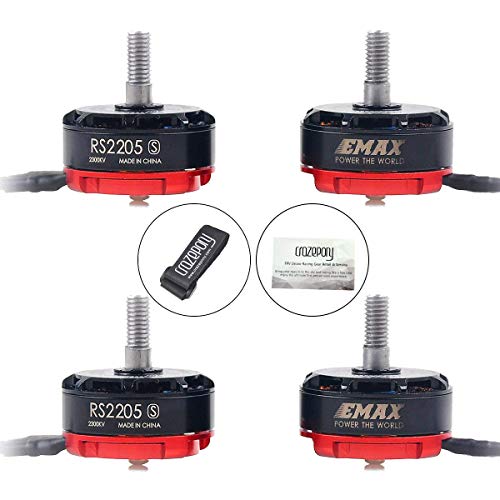

Crazepony 4pcs EMAX RS2205S 2300KV Brushless Motor 3-4S for X210 QAV250 QAV300 FPV Racing Drone Quadcopter
Product Description
Crazepony 4pcs EMAX RS2205S 2300KV Brushless Motor 3-4S for X210 QAV250 QAV300 FPV Racing Drone Quadcopter
Why do you choose our Brushless Motor-EMAX RS2205-S 2600KV? The follow is our superiority:
1. Lighter and Lower Profile:2 grams lighter than the first version of the RS2205. This eliminates unnecessary mass and allows quicker rotational response of the bell. The shorter motor height allows a lower center of gravity closer to the mounting point.
2. Cooling: RS2205-S cooling fins have been reworked to keep the motor height and weight low while maintaining functionality.
3. N52SH Curved Magnets: By utilizing N52SH curved magnets, the pulling force between the stator and magnet is greatly increased.
4. Bearings: Genuine Japanese NMB bearings ensure smooth, long-lasting performance.Thrust: Compared to the RS2205, the new RS225-S cranks out another +100g of thrust. Paired with a KingKong 6x4 propeller, expect over 1,400 grams of thrust
5. Hollowed Steel Prop shaft and main shaft: The upgraded shafts maximize durability. No worry of damaging threads during crashes.
6. Bell Retaining Screw:Â RS2205-S has no chance of having bells pop out during a race. It is also easy to service the motor without needing a special tool.
Specifications:
Framework:12N14P
Input voltage: 3-4s
Propeller:5"
Diameter:27.9mm
Length:28.6mm
Shaft:3mm
Max.thrust:1281g
Weight:28.8g
Package Including: 4 * EMAX RS2205-S 2600KV Brushless Motor (1 * Free Battery Straps)
Technical Specifications
