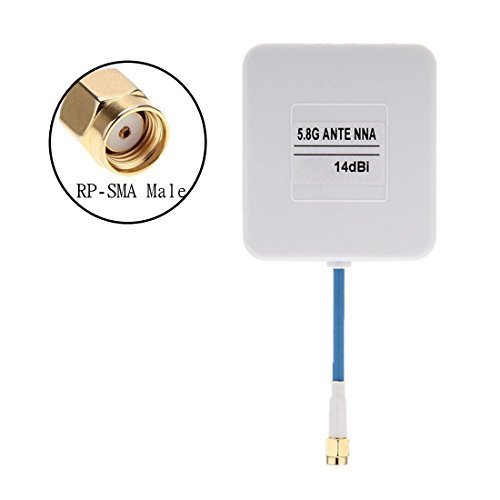

Crazepony FPV Panel Antenna 5.8G 14dBi High Gain RX RP-SMA Male for Multicopter Phantom Monitor FPV Goggles etc

Sold Out / Out of Stock

This item may be available in a different size, colour, scent, version or platform:

Variations

Crazepony FPV Panel Antenna 5.8G 14dBi High Gain RX RP-SMA Male for Multicopter Phantom Monitor FPV Goggles etc

5.8ghz 14dBi Antenna High Gain Panel Rx RP-SMA Male for FPV RC Multicopter DJI Phantom

Descriptionï¼š

Specially designed for RC FPV, mini size, high gain, low SWR and high self recovery function at any angle

Transmitting distance: 15km with 5.8G 1200mw VTX/RX.

5km with 5.8G 600mw VTX/RX

Frequency: 5600-5950MHz

Gain-dBi: 14dBi

3db vertical beamwidth: 40 degree

3db horizontal beamwidth: 35 degree

Radiation impedance: 50ohm

Polarization: Vertical

Sidelobe suppressionandgt;=13DB

VSWR: andlt;=1.5

Front-to-back ratio: andgt;=25DB

Maximum power: 50W

Connector: RP-SMA Male

Package size: 13.5 * 6.5 * 2cm

Package weight: 48g

Adhesive taps package

--------------------------------------------------------

Package Including

1 * 5.8ghz 14dBi Antenna High Gain Panel Rx RP-SMA Male
Country USA
Brand Crazepony
Manufacturer Crazepony
Binding Electronics
ItemPartNumber AC31422054NMKJ388
UPCs 190033552413
EANs 0190033552413
ReleaseDate 0000-00-00
