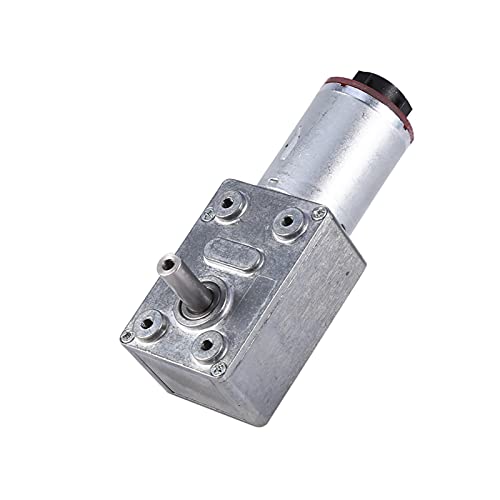

DC Worm Gear Motor 12V High Torque Reduction Gear Box with Encoder Srong Self-Locking 6mm Output Shaft(20RPM)
Product Description
DC Worm Gear Motor 12V High Torque Reduction Gear Box with Encoder Srong Self-Locking 6mm Output Shaft(20RPM)
- FEATURES-- Gearbox output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to a number of installation dimensions of the requirement occasion.
- STABLE PERFORMANCE-- Using precious metals carbon brush.Long service life, low noise, large torque. Stable and reliable performance.Can rotate and reversal, work more accurate.
- SPECIFICATION-- 12V; No-loading Revolving Speed: 100rpm / 40rpm / 30rpm / 20rpm / 10rpm(optional)
- WIRING METHODS-- Red: Motor power + (exchange can control rotating and reversing); Black: Coding power- negative (3.3-5V) polarity cannot be wrong; Yellow: Signal feedback; Green:Signal feedback; Blue:Coding power + positive(3.3-5V)polarity cannot be wrong; White:Motor power - (exchange can control rotating and reversing)
- QUALITY AFTER-SALE SERVICE-- We care for every customer’s feeling. You can get in touch with customer service when you meet any question.
Rated Voltage: DC 12V
No-loading Revolving Speed(Optional): 100rpm / 40rpm / 30rpm / 20rpm / 10rpm
10RPM   Rated Torque 22.5 kg.cm  Max.Torque 25kg.cm   Reduction Ratio 600
20RPM   Rated Torque 12 kg.cm     Max.Torque 25kg.cm   Reduction Ratio 340
30RPM   Rated Torque 7.4 kg.cm    Max.Torque 25kg.cm   Reduction Ratio 200
40RPM   Rated Torque 5.6 kg.cm    Max.Torque 24kg.cm   Reduction Ratio 150
100RPM  Rated Torque 1.5 kg.cm  Max.Torque 6.4kg.cm   Reduction Ratio 40
Weight: 165g(approx.)
Wiring Methods:
Red: Motor power + (exchange can control rotating and reversing)
Black: Coding power- negative (3.3-5V) polarity cannot be wrong
Yellow: Signal feedback
Green: Signal feedback
Blue: Coding power + positive(3.3-5V)polarity cannot be wrong
White: Motor power - (exchange can control rotating and reversing)
Package Includes:
1 x Motor
Technical Specifications
