DFRobot Waterproof DS18B20 Temperature Sensor Kit

DFRobot Waterproof DS18B20 Temperature Sensor Kit
- This waterproof temperature sensor kit is using DS18B20 probe AS
- It is easy to connect on the Arduino board
- Applications: HVAC environmental controls, sensing temperatures inside buildings,equipment or machinery, and process monitoring and control
INTRODUCTION
If you are familiar with our product, you will find there is waterproof temperature sensor named DS18B20. This waterproof temperature sensor kit is using the same probe--DS18B20 probe AS. It contains a probe with a resister module. So it is easy to connect on the Arduino board.

The DS18B20 temperature sensor provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor. Compatible with 3.0-5.5V systems.

SPECIFICATION
Operating voltage: 3.0~ 5.5V
Â±0.5Â°C Accuracy from -10Â°C to +85Â°C
Usable temperature range: -55 to 125Â°C (-67Â°F to +257Â°F)
9 to 12 bit selectable resolution
Uses 1-Wire interface- requires only one digital pin for communication
Unique 64 bit ID burned into chip
Multiple sensors can share one pin
Temperature-limit alarm system
Query time is less than 750ms
3 wires interface:
- Type A
Red wire - VCC
Black wire - GND
Yellow wire - DATA
- Type B
Red wire - VCC
Yellow wire - GND
Green wire - DATA
Stainless steel tube 6mm diameter by 35mm (1.34") long
Cable diameter: 4mm (0.16")
Length: 90cm (35.43")

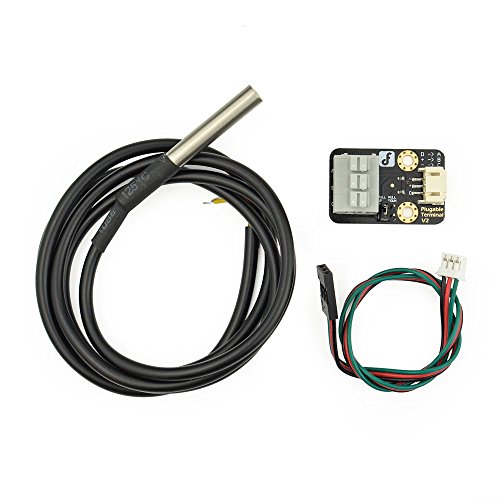

SHIPPING LIST
Waterproof DS18B20 Digital temperature sensor (DFR0198) x1
Terminal sensor adapter (DFR0055) x1
Digital sensor cable (FIT0011) x1
