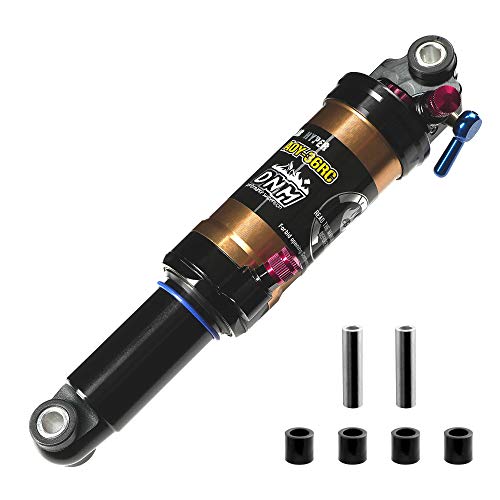

DNM Damping 3 System Mountain Bike Air Rear Shock Rebound/Lock

DNM Damping 3 System Mountain Bike Air Rear Shock Rebound/Lock Out/Air Pressure Adjustable AL 7005 Shark/AL 6061 Shock Body 200mm (7.87") x 55mm
- PRODUCT SPECIFICATION: Adjustments Rebound / Lockout / Air Pressure Adjustable, Damper shaft Dark hard-anodized AL-7075 Ø 10 mm (0.39 inch) shaft. Dark hard-anodized AL-6061 shock body.Riding style XC /TRAIL, Available Size Eye to Eye x Travel 165 x 35 mm ( 6.50 x 1.38 inch) 190 x 50 mm ( 7.83 x 1.97 inch) 200 × 55 mm ( 7.87 × 2.17 inch) Weight: 0.4 KG(0.88 Ib) for 165 mm Lenght
- EXTRA BUSHING INCLUDES: Top Busing Size 8mm x 24mm Bottom Bushing Size 8mm x 24mm, Includes extra bushing and hardware 8mm x 50mm Length. We Have Included An Additional Set Of Accessories To Meet The Different Size Requirements Of Some Customers Please see 2nd Pictures
- FUNCTIONAL; Rebound Adjustment Knob +direction Rotation Increase Damper (Slow),- Direction Rotation, Decrease Damper (Fast). Compression Adjuster + Direction Rotation Lock-out,- Direction Rotation Open Up.main Air Chamber Supply Air Pressure According To Pressure Meter
- BAROMETRIC RECOMMENDATION; Weight 120 lbs - Main air chamber 90 Psi, Negative air chamber 50 Psi.Weight 140 lbs - Main air chamber 105 Psi, Negative air chamber 50 Psi.Weight 160 lbs - Main air chamber 120 Psi, Negative air chamber 55 Psi.Weight 180 lbs - Main air chamber 135 Psi, Negative air chamber 65 Psi.Weight 200 lbs - Main air chamber 150 Psi, Negative air chamber 70 Psi.Weight 220 lbs - Main air chamber 165 Psi, Negative air chamber 75 Psi.
- DNM QUALITY: ORDER NOW, WORRY FREE! Made in Taiwan We're So Confident About Our Product Quality That If You Have Any Product Issues, We’re Very Happy To Either Provide A Refund Or A Replacement On Your Purchase! We’re Also Here To Support You If You Have Any Questions Or Queries, Please Get In Touch And We’ll Gladly Help.
Front Forks, Shock Absorber Manufacturer
Carrying on 2008 experience, we are mainly focus on Snowmobile & ATV market in Russia area, Bicycle field in Brazil. Look ahead into the future, other than the products we have developed so far, we will also be developing other suspension related products. We hope that with our outstanding products (such as front forks, shock absorber..)and its excellent quality, we will continue to lead this market in the future.

Weight: 320g =0.75lbs
Eye to Eye: 200mm=7.87"
Travel: 50mm=1.97"
Hole: 8mmx24mm
Damping: 3 System
Adjustments: Rebound, Lockout, Adjust High Pressure
Damper Shaft: Steel
Valve Angle: 30 Degree
Shock Body: Dark Hard Anodized Aluminum 6061
Spring: Air Spring
Intended Use: All Mountain, Freeride, Downhill
Made in Taiwan
Warranty: One year

Country	USA
Brand	DNM
Manufacturer	DNM
Binding	Sports
PartNumber	AOY-36RC-200
Model	AOY-36RC-200
Warranty	2 Year Manufacturer
Color	Gold
Height	8.6614
Length	1.9685
Weight	0.87
Width	2.3622
Size	Eye to Eye 200mm 7.87", 55mm Travel
ReleaseDate	0000-00-00

DNM Damping 3 System Mountain Bike Air Rear Shock Rebound/Lock Out/Air Pressure Adjustable AL 7005 Shark/AL 6061 Shock Body 200mm (7.87") x 55mm
