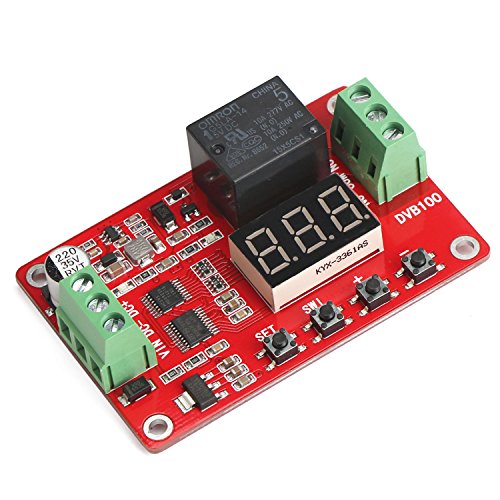

DROK Digital Voltage Comparator DC 0-100V Voltage Monitor

DROK Digital Voltage Comparator DC 0-100V Voltage Monitor Controller Relay Module Panel Voltmeter with LED Display Charging Discharging Over&Under Voltage Protection
- Voltage comparator will be operated with voltage dc 8- 28V (limitation dc 8 - 32V), and with high accuracy of 0.1V
- Users can easily set the upper and lower limits of the voltage, and the testing voltage range is 0-100v
- The voltage comparator can save the setting parameters automatically, if the power off suddenly, users won't lost the settings
- The voltage monitoring controller is multifunctional with voltage measurement, charging monitoring, discharging monitoring, operate within the range, operate outside the range functions
- Improved power supply module makes stable performance, it can be used with a wide voltage range; increase the delay function for the closing and off
Measuring range: DC 0.0 - 99.9VLoad capacity: max load capacity of relay's normally open port: DC 0 - 30V / 10A, AC 0 - 250V / 10A; max load capacity of relay's normally closed port: DC 0 - 28V / 10A, AC 0 - 125V / 10AModule functions:Function 1:Voltage measurement: when select this function the relay will not operate, the display shows the current measurement voltage.Function 2:Charging monitoring: when the measured voltage is lower than the lower limit voltage, the relay operates; when the measured voltage is higher than the upper limit voltage, the relay disconnects.Function 3:Discharging monitoring: when the measured voltage is higher than the upper limit voltage, the relay operates; when the measured voltage is lower than the lower limit voltage, the relay disconnects.Function 4:Operate within the range: when the measured voltage is between the upper and lower limits, the relay operates; in other cases, the relay disconnects.Function 5:Operate outside the range: when the measured voltage is lower than the lower limit voltage, or the measured voltage is higher than the upper limit voltage, the relay operates; in other cases, the relay disconnects.Module interfaces:Input interfaces:DC+: power supply positiveDC-: power supply negativeVIN: detecting port of measuring voltageOutput interfaces:NO: relay's normally open interface. It will be hanging before the reply operates; it will short connect to COM after relay operates.COM: relay's common interfaceNC: relay's normally closed interface. It will short connect to COM before the relay operates; it will be hanging after the reply operates.Package includes:1 x Voltage Monitoring Controller.
Country USA
Brand DROK
Manufacturer DROK
Binding Personal Computers
ItemPartNumber 200231
Model 200231
ReleaseDate 2018-06-26
UnitCount 1

Country	USA
Brand	DROK
Manufacturer	DROK
Binding	Personal Computers
ItemPartNumber	200231
Model	200231
ReleaseDate	2018-06-26
UnitCount	1

DROK Digital Voltage Comparator DC 0-100V Voltage Monitor Controller Relay Module Panel Voltmeter with LED Display Charging Discharging Over&Under Voltage Protection
