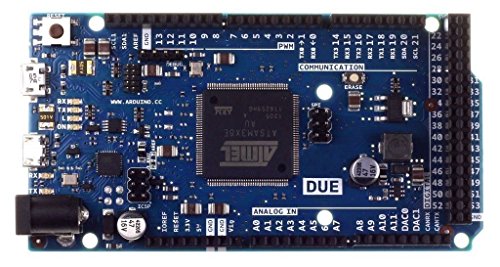

DUE R3 Board SAM3X8E 32-bit ARM Cortex-M3 And Arduino Compatable USB
Product Description
DUE R3 Board SAM3X8E 32-bit ARM Cortex-M3 And Arduino Compatable USB
- 💻[Contains Everything Needed] It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. Arduino Uno R3 - Made In Italy
- 💻[Excellent Quality] Solder is Very Clean
- 💻[Included] USB Cable for Arduino Board
- 💻[Platform] Arduino Microcontoller based on the ATmega328.
- 💻[Customer Experience] We Have Always Cared about the Customer Experience and Improve the Product Function Details.
Pattern Name:DUE board for Arduino
Specification:
Microcontroller: AT91SAM3X8EA
Operating voltage: 3.3V
Input voltage(recommended): 7V - 12V
Input voltage(limits): 6V - 20V
Digital I / O pins: 54 (of which 12 provide PWM output)
Analog input pins: 12
Analog outputs pins: 2 (DAC)
Total DC output current on all I / O lines: 130mA
DC current for 3.3V pin: 800mA
DC current for 5V pin: 800mA
Flash memory: 512KB all available for the user applications
SRAM: 96KB (two banks: 64KB and 32KB)
Clock speed: 84MHz
Warning:
Unlike other Arduino boards, the Arduino DUE board runs at 3.3V. The maximum voltage that the I / O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I / O pin could damage the board.
Package included:
1 x Arduino compatible DUE R3
1 x USB cable
Technical Specifications
