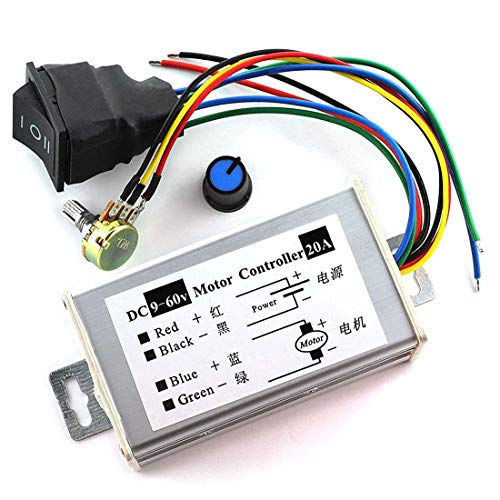

DZS Elec 1pc DC Motor Speed Controller 9-60V Forward/Reverse High Power PWM Control Switch Motor Speed Regulator DC 12V 24V 36V 48V 60V 20A 1200W
Product Description
DZS Elec 1pc DC Motor Speed Controller 9-60V Forward/Reverse High Power PWM Control Switch Motor Speed Regulator DC 12V 24V 36V 48V 60V 20A 1200W
- PWM DC Motor Speed Controller, Work Voltage: 9V-60V; Output Current: 0A-20A; Continuous Power: 1200W (max)
- Speed Range: 0%-100%; Control Frequency: 25KHZ, adopting current adjusting, PWM to control light and speed.
- Linear regulate motor speed by potentionmeter, support forward / reverse rotation regulation.
- Adopting advanced technology, high efficient, large torque, low heat etc. performance.
- Can be widely used for DC brush motor speed controlling, light dimming in DC circuit, PWM can take full advantage of power energy.
Specification:
Product Name: PWM DC Motor Speed Controller
Work Voltage: DC 9-60V
Output Current: 0-20A
Continuous Power: 1200W (max)
Control Frequency: 25KHZ
Speed Range: 0%-100%
Output Voltage: Load Linear
Speed Mode: Potentiometer
Speed Type: Adjusting current
Forward/Reverse Rotation: YES
Suitable Motor: DC brush
Fix Mode: Mounting Lug
Mounting Lug Hole Spacing: 104mm
Potentionmeter Hole Diameter: 7mm
Forward/Reverse Button Size: 31x26mm, hole 28x22mm
Module Size: 92x52x36mm
Connection:
Red Line: Positive power supply +
Black Line: Negative power supply -
Blue Line: Positive motor +
Yellow Line: Negative motor -
Note: Please do not switch direction while high speed running, can not be used for electrombile.
Package:
1pcs 20A 9-36V DC Motor Speed Controller
