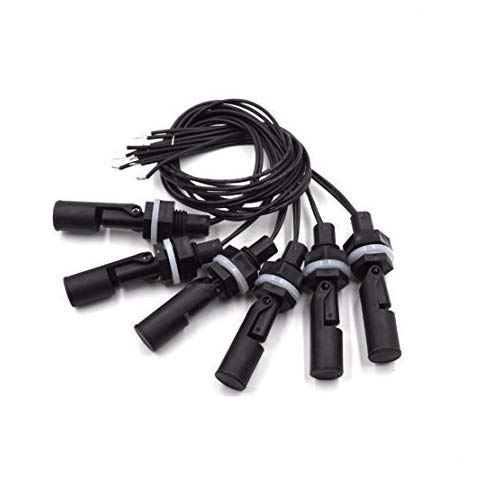

DerBlue 6 Pieces Side Mounted Horizontal Liquid Float Switch Water Level Sensor

The description of products:

The plastic float switch of side mount duckbilled is a frequently opened, often closed, switching contact and with the overall brake, it's installed from the outside and doesn't need to be sealed.

The Main parameters of products:

Installation: It is installed horizontally drilling at the bottom or at the top

The texture of guide rod: PP plastic

The texture of floater: PP plastic

Pressure of work: 15 Bar

Temperature of work: -10~80℃

Accurate error: ±2mm （In the water)

Repeatability: ±1mm （In the water)

Switch forms：N.O /N.C（Open and close frequently)

Max Contact Rating :10W

The voltage of work:110VDC

The current of work: 0.5A

It is often used in mechanical equipment, such as environmental protection air conditioning, water cooling fan, water heater, water dispenser, dishwasher, Electric heating barrel, hydraulic press, treatment equipment of water, air compressor and other mechanical equipment, etc.

NOTE: The float switch cannot control solenoid valve directly or high power relay, ac contactor, etc. It will be buffer by adding small relays such as HH54P.
