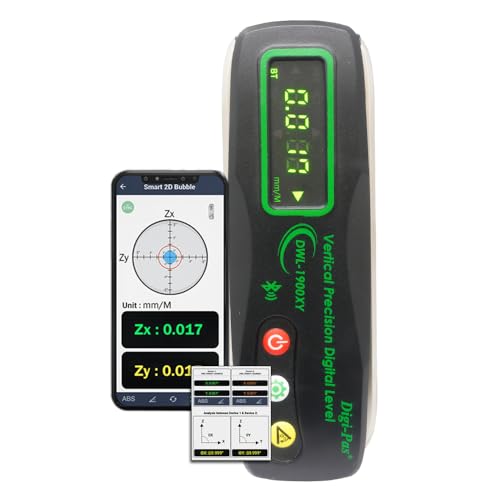

Digi-Pas 2-Axis Smart VERTICAL & PERPENDICULARITY Precision

Digi-Pas 2-Axis Smart VERTICAL & PERPENDICULARITY Precision Level DWL1900XY Bluetooth, Measurement resolution of 1µm/50mm, 5µm/300mm to 17µm/1,000mm
- Precision angular measurement/alignment on vertical axis essentially involves two intertwined vertical planes (2-axis i.e. Zx & Zy) which demand for 2-dimensional solution rather than the outdated single-axis method using Master Granite Square and a dial gauge that could only indicates 'one axis at a time'.
- WIRELESSLY pairs to Smartphones/Tablets (One FREE App Incl. for Apple/Android), instantly displays both X&Y axis level status (Digital & Graphic) on your phone screen while you were SIMULTANEOUSLY adjusting vertical tilt and roll over bluetooth range. MULTIPLE users SHARING one or more smart level(s), additional paid app can be separately downloaded from Apple/Google App stores.
- Greatly CUTDOWN machine alignment TIME (by >70%) enables one-man operability allow GREAT COST SAVING as well as improve alignment QUALITY with utmost precision during Installation, Setup, Inspection & Maintenance of precision machines, vertical spindle shaft and X-Y Table surface planes PERPENDICULARITY checking (when pairing with horizontal level DWL1500XY) on alignment-sensitive equipment in a SMART way. Rugged design with high impact resistant withstanding rough handling. Thousands Digi-Pas digital levels shipped worldwide in just few months!
- RESOLUTION: 1µm/50mm,3µm/150mm,5µm/300mm,17µm/1000mm. Measurement range: 90.000° ~ ±5.000° dual-axis. Measurement Accuracy:±6um/150mm or ±35um/1,000mm stroke length at (90.000°±0.500°) and ±12um/150mm or ±70um/1,000mm stroke length at other angles. Operating temp. range: 10° to 120°F. Bluetooth range: approx. 50ft.
- ACCURACY of Digi-Pas digital level is verified by accredited Calibration & Test Laboratories in USA, Japan and Germany traceable to NIST, JIS & DIN. This purchase does not include a NIST-traceable calibration certificate
Country USA
Brand Digi-Pas
Manufacturer Digipas Technologies Inc
Binding Unknown Binding
ItemPartNumber 2-01501-99
Model 1900
Color 1. Single (Black)
EANs 8885018810375
ReleaseDate 0000-00-00

Country	USA
Brand	Digi-Pas
Manufacturer	Digipas Technologies Inc
Binding	Unknown Binding
ItemPartNumber	2-01501-99
Model	1900
Color	1. Single (Black)
EANs	8885018810375
ReleaseDate	0000-00-00

Digi-Pas 2-Axis Smart VERTICAL & PERPENDICULARITY Precision Level DWL1900XY Bluetooth, Measurement resolution of 1µm/50mm, 5µm/300mm to 17µm/1,000mm
