Digital Audio Trigger Device with 12V Outputs - BobWire DAT1

Digital Audio Trigger Device with 12V Outputs - BobWire DAT1 Ads a 12 Volt Trigger Output to TVs, Streamers & DACs, auto Power on amplifiers or TV Lifts. Compatible with Sonos Connect & Echo Link.
- NOTE: THIS DEVICE WILL NOT TURN ON YOUR SURROUND RECEIVER (AVR), FOR USE WITH STAND-ALONE AMPLIFIERS WITH 12V TRIGGER INPUTS ONLY. (AVRs don't have 12V trigger inputs)
- Add a 12 Volt trigger! Compatible with SONOS Connect, Echo Link, ChromeCast Audio, TV or any AV device with a digital/optical audio output
- 12 Volt trigger can be used to power on/off amplifiers, fans, speaker selectors, relays, lifts, projections screens or other accessories
- Two different 12 Volt trigger outputs are available depending on the connected source and desired action
- Use the DAT1 connected to a TVs optical output and the 12V triggers can be used to control most TV lifts
- Analog audio output with 192kHz 24-bit Cirrus Logic DAC improves the sound quality (PCM only)
- An analog version is also available, see BobWire model AAT

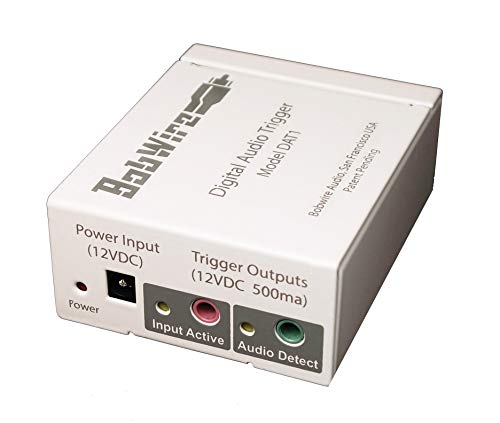

Bobwire DAT1 - Digital Audio Trigger

The Bobwire DAT1 will simplify your AV (audio video) installation by providing a 12-volt trigger to turn on/off amplifiers, cooling fans, AV selectors or other accessories. It works by monitoring a digital audio signal and then activating one of the two different 12V outputs depending on if the source is powered on or if audio is playing. This is particularly useful for music streaming devices that are connected directly to a power amplifier. It is compatible with the Sonos Connect, Echo Link or ChromeCast Audio. Some audio amplifiers have audio sensing circuits, but these are not reliable at lower listening levels. The Bobwire DAT1 will reliably trigger and turn on an amplifier every time as soon as the connected source starts playing audio (like when you press play on your streamer app) regardless of the volume level. The built-in hi resolution 192kHz 24-bit DAC will also improve the overall sound quality. The DAT1 can be used with any AV device that has an optical output including music & video streamers, TVs, CD/DVD/Blu-ray players, computers, Bluetooth receivers, airport express.

🔘On-board software analyzes the digital audio signal and determines when the connected device is powered on, paused or playing music (or sounds) then activates one of the 12 Volt outputs accordingly

🔘 1st 12V Trigger output activated when the AV source is turned on (Dolby Digital, DTS or PCM)

🔘 2nd 12V Trigger is activated when audio is actually playing (PCM only)

🔘 High power 500ma per 12V output can directly drive fans or multiple relays

🔘 Optical input with looping output to pass audio on to a surround sound receiver or another DAC

🔘 Hi-Res 192kHz 24-bit Cirrus Logic DAC improves sound quality

🔘 Automatic turn off delay prevents the amplifier from turning off between songs

🔘 Optical cable, 12V trigger cable & power supply (100V-250V AC mains) are included.
Country USA
Brand BobWire
Manufacturer BobWire
Binding Misc.
PartNumber DAT1
Model DAT1
Color White
IsAdultProduct
Height 1
Length 2.6
Width 2.1
Size 2.5" x 2" x 1"
NumberOfItems 1
ReleaseDate 0000-00-00

Country	USA
Brand	BobWire
Manufacturer	BobWire
Binding	Misc.
PartNumber	DAT1
Model	DAT1
Color	White
IsAdultProduct
Height	1
Length	2.6
Width	2.1
Size	2.5" x 2" x 1"
NumberOfItems	1
ReleaseDate	0000-00-00

Digital Audio Trigger Device with 12V Outputs - BobWire DAT1 Ads a 12 Volt Trigger Output to TVs, Streamers & DACs, auto Power on amplifiers or TV Lifts. Compatible with Sonos Connect & Echo Link.
