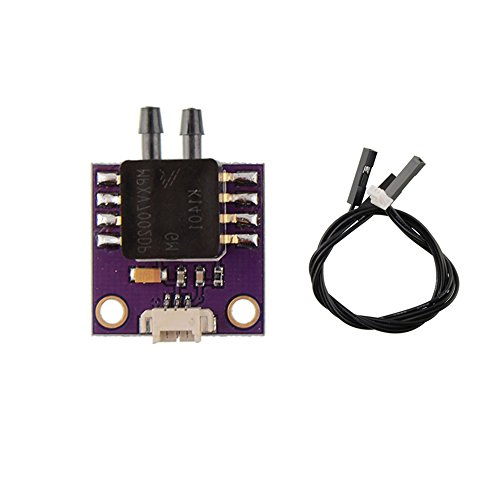

Diymore Breakout Board MPXV7002DP Transducer APM2.5 APM2.52 Differential Pressure Sensor
Product Description
Diymore Breakout Board MPXV7002DP Transducer APM2.5 APM2.52 Differential Pressure Sensor
- The MPXV7002 is designed to measure positive and negative pressure.
- The MPXV7002 series piezoresistive transducer in the small outline package (SOP) is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications.
- And particularly those employing a microcontroller or microprocessor with A/D inputs.
- This patented, single element transducer combines advanced micromachining techniques, thin-film metallization and bipolar processing which provide an accurate, high level analog output signal that is proportional to the applied pressure.
- In addition, with an offset specifically at 2.5V instead of the conventional 0V, this new series allows to measure pressure up to 7kPa through each port for pressure sensing but also for vacuum sensing (refer to the transfer function in the data sheet for more detailed information).
Description:
The MPXV7002 series piezoresistive transducer in the small outline package (SOP) is a state-of-the-art monolithic silicon pressure sensor.
It's designed for a wide range of applications, and particularly those employing a microcontroller or microprocessor with A/D inputs.
This patented, single element transducer combines advanced micromachining techniques,
Thin-film metallization and bipolar processing which provide an accurate,
High level analog output signal that is proportional to the applied pressure.
In addition, with an offset specifically at 2.5V instead of the conventional 0V.
This new series allows to measure pressure up to 7kPa through each port for pressure sensing,
but also for vacuum sensing (refer to the transfer function in the data sheet for more detailed information).
Specification:
-2 to 2 kPa (-0.3 to 0.3 psi)
0.5 to 4.5 V Output
Weight: 0.1oz; 4g
Please see it to know more:http://code.google.com/p/ardupilot-mega/wiki/Airspeed
Package Content:
1x Differential Pressure Sensor Board
1x Free cables
Technical Specifications
