Donner 1PCS DMX512 DMX Dfi DJ 2.4G Wireless Receiver Tricolor

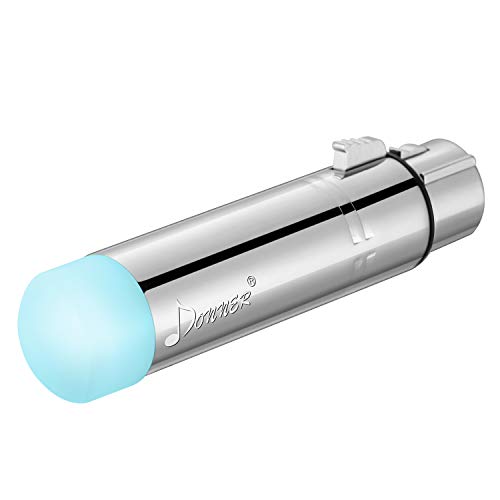

Donner 1PCS DMX512 DMX Dfi DJ 2.4G Wireless Receiver Tricolor LED Indicators with Adapter
- With Light Dome, 7 groups ID code settable, User can use 7 groups individual wireless net without any interfere
- No time delay when signal data is transmitting, signal data is real time and reliably.
- This product adopts a 2.4G ISM frequency section. High effective GFSK modulate, communication design
- 126 channels jumping frequency automatically, high anti-jamming ability
- DMX512 wireless receiver transmits standard DMX514 protocol data (generated by console) by wireless way.This one is not rechargeable
Specification:
2.4G wireless DMX512 R/T
7 groups ID code settable, User can use 7 groups individual wireless net without any interfere.
Input voltage: 5VDC 500mA MIN
Communication distance: 400M (visible distance)
Max transmitting power rate: 20dBm
Receiver Sensitivity: -94dBm
CPU: 32-bit ARM Core
Modulation: GFSK
DMX Signal Interface: RS485
Operating temperature: -40 ~ 85 Â°C,Storage Temperature: -65 ~ 150 Â°C
Ambient Relative Humidity: 5 to 95% (non-condensing)
Automatic Reboot Trigger: Built-in WDT (watchdog timer)

Operating manual
1. Press momentary switch above the side led indicator to indicate ID setting
2. Press again to set IC,to the color ID desired, adding 1 each time you press the switch will advance the color ID code.
3. Working condition: LED constant lit up:No DMX or wireless signal. Red LED flash:Transmitting Green LED flash:receiving
4. RF frequency 2.400 - 2.525G,total 126 channels,it's searching automatically,
5. ID Code "1-7" groups ID code,press 'KEY' for setting,it only can work under same ID code of transmitter and receiver. (Same LED Color)
Establishing Communication:
1. Power on DMX512 wireless received board first and then following to power up the transmitted boards.
2. Press "Key" button to set same ID value of transmitted board and received board. Please use different ID value if you need use more than 1 group wireless universals at same time in same place.
3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.
Package included:
1x DMX512 Wireless Receiver with light dome (US Plug)
1x Power adapter
Country USA
Brand Donner
Manufacturer Donner
Binding Electronics
ItemPartNumber FBA_US-EC775-DR-1
Model US-EC775-DR-1
Color Silver
Size 1 Receiver
UPCs 708302978101
EANs 0708302978101
ReleaseDate 0000-00-00

Country	USA
Brand	Donner
Manufacturer	Donner
Binding	Electronics
ItemPartNumber	FBA_US-EC775-DR-1
Model	US-EC775-DR-1
Color	Silver
Size	1 Receiver
UPCs	708302978101
EANs	0708302978101
ReleaseDate	0000-00-00

Donner 1PCS DMX512 DMX Dfi DJ 2.4G Wireless Receiver Tricolor LED Indicators with Adapter
