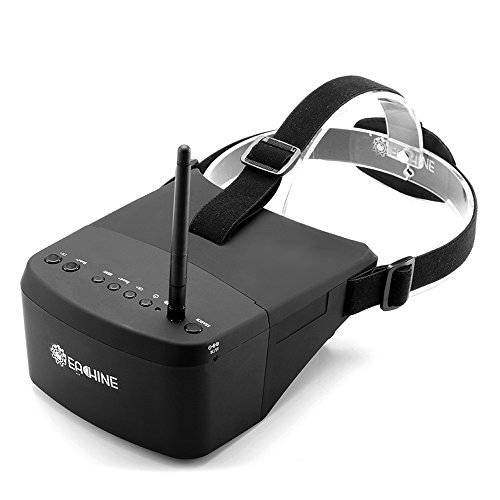

Separable design, 5 inch screen can be used as small monitor on radio controller or with tripod
HD high brightness 5inch LCD specially tuned for FPV racing
Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand
Come with advanced auto-searching function ad show you the working frequency on screen
Any questions, please feel free to contact us via email: email@example.com
Specification Brand name: Eachine Item No.: EV800 Screen size: 5.0 inch Screen resolution: 800*480 (No blur after enlarge by the lens) Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV View Angle: 140/120 degree(Horizontal/Vertical)
Battery and recharge Built-in 3.7V/2000mAh battery; Each battery circle offer around 3.5hr working time; 5-12V wide recharging voltage range, typical recharging voltage is 5V Accepts 5V power banks or 2S(7.4V)/3S(11.1V) battery as back-up power to have long working time
Receiver Build in 5.8G 40CH Raceband receive
Frequency Table Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725 Frequency Band B 5733 5752 5771 5790 5809 5828 5847 5866 Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945 Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880 Frequency Band R 5658 5695 5732 5769 5806 5843 5880 5917
Body Dimension: 180x145x82mm Weight: 375g with 3.5hr 2000mAh battery Belt: three-ways adjustable belt
Feature: - Wide range re-charge voltage 5-12V, power banks or 2S/3S batteries can be used as back-up power sour, to prolong the working time; - Ergonomic design fit your faces; - Super-wide visible angle up to 82 degree; - 92% transparent lens adopted, no distort, no blur on the adage of screen; - Light weight 375g with 3.5hr 2000mAh battery, RTF for any scale racing game. - 5 inch 800*480px HD high brightness LCD
Package Included: 1 X EV800 FPV VR Goggles (Built-in 3.7V/2000mAh battery) 1 X Antenna 1 X USB charger 1 X User Manual 1 X Clean cloth
Most Helpful Customer Reviews
The screen works as does the receiver; I can see the broadcast from my flying machines.
The design of this headset leaves a lot to be desired. I don't know what kind of face this was made for, but my face does not seem to be the intended target. The pads that are supposed to rest on your cheeks to support the headset pretty much have to be in my eyes if I want my nose to be out of the headset. This requires me to remember to breath through my mouth if I don't want to fog up the screen. The straps are too stretchy to support the headset like they should.
My experience with sticking screens on my face prior to this only includes the HTC Vice which is vastly superior in terms of fitting to the face and feeling like it's going to stay there. It is also vastly more expensive and doesn't do the same thing so it isn't the best comparison.
I believe I will just take off the headset part, mount it on a tripod, and only use it for indoor flying. Though it...
I absolutely love these goggles, and the fact that you can separate the screen it is great for friends and family to watch. I bought these while I waited for my eachine vr d2 to come in. I actually liked these a little bit better on my face, but I will say they feel heavier when you look up or down on your face, but they are definitely a great goggle. Same video quality as my vr d2 just without DVR, they are a little heavier, and a little bigger. These also have "video in" if you need it. I feel like this internal battery last twice as long as my external lipo on the VR D2 as well.
I've been using these for a few weeks now and I have to say I'm more impressed than I thought I would be. These are entry level fpv gear, but they really work well. I might switch to something else eventually, but these so far are great.
The picture is clear, and with the addition of a clover leaf antenna, the reception is great. The fact that I can use these for any aircraft I have that broadcasts at 5.8 ghz. Including my tiny whoop. The only downside is that if you don't add some foam to the bottom of the nose area you will get some light leakage and an uncomfortable fit. Luckily I had some laying around.
It's a good buy especially if you're just getting into the hobby
