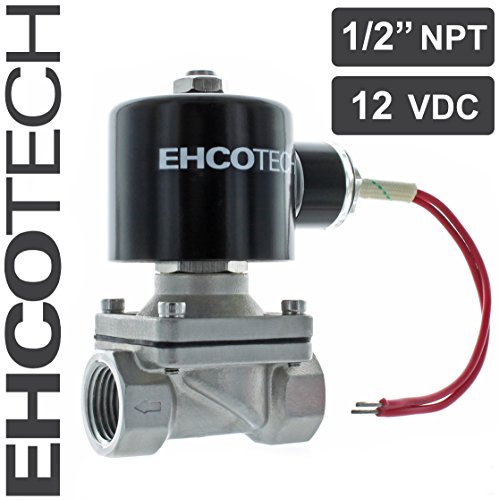

EHCOTECH 1/2" 12V DC Solenoid Valve, Stainless Steel, Water Air Gas FKM/VITON NC S21V

This is a great general purpose valve for many water, air, fuel, or gas projects.

General

• 1/2" NPT Ports (0.840" outer thread diameter); NPT is the U.S. standard pipe thread

• 12-Volt DC

• 2-way, Normally Closed (energize to open, de-energize to close)
• FKM (Viton) diaphragm

• Semi-Direct Acting Valve (allows for good low pressure performance)
• Large internal orifice (5/8" or 16 mm internal orifice diameter)
• Cv value:  4.8

• 0 to 145 psi or vacuum
• Max media temp: 265° F (130° C)
• Zero differential pressure valve

• Gravity feed capable (For best gravity feed performance we recommend EHCOTECH motorized valves)


Suitable Media

• Water, Air, Various Gases

• Diesel Fuel, Gasoline, Glycol

• Other media compatible with FKM (Viton)
• NOTE: do not use general purpose valves for Natural Gas. Natural Gas valves are optimized for 0 to 0.5 psi range.

Electrical

• 12-volt DC / 1.4 Amps
• Coil tempreature will stabilize between 155° and 185° F during long activation periods (typical for general purpose solenoid valves)

• Contact us regarding applications requiring a very large number of cumulative activation hours


 Dimensions

• Height: 4"
• Width: 2"
• Length: 2-3/8"
• Weight: 1 lb 8 oz
