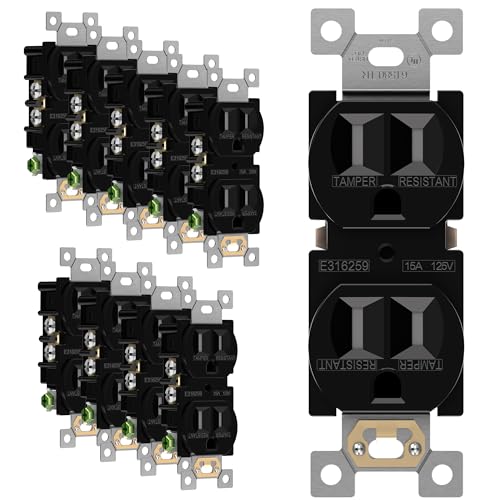

ENERLITES Tamper-Resistant Child Safe Duplex Receptacle

ENERLITES Tamper-Resistant Child Safe Duplex Receptacle Outlet, Residential Grade, 3-Wire, Self-Grounding, 2-Pole, 15A 125V, UL Listed, 61580-TR-BK, Black (10 Pack)
- Tamper-resistant (TR) receptacles prevent unwanted objects from being inserted. High impact-resistant polycarbonate thermoplastic cover and body for long service life
- Suitable for residential such as homes, apartments, condominiums and for commercial use in corporate buildings, hotels, and restaurants that only require a 15A outlet.
- Shallow body design for maximum wiring; backstab or side options. Break-off plaster ears (yokes tabs). Installation instructions included. Outlet Dimensions: 4.06” H x 1.31” L x 1.09” D
- Use with ENERLITES wall plates for the best fit and color match, part numbers 8821-BK black cover
- Complies with 2017 NEC, Article 406.12 for tamper-resistant receptacles. 15A 125V, 5-15R, self-grounding, 2-pole, 3-Wire. UL94, V2 Rating, 1-year warranty, UL Listed
ENERLITES 61580-TR tamper resistant duplex receptacle is a self-grounding 15 A/125 V 5-15R outlet.

The built-in protective shutter mechanism prevents foreign objects from being inserted into the receptacle contact openings, but still allows easy insertion of proper plugs. The tamper resistant (TR) logo is clearly visible on the face of the device to show the safety features.

This receptacle is made out of high impact resistant thermoplastic and body for an extended life and high performance in both commercial and home applications. The green grounding screw and self-grounding clip allows automatic grounding connection when installed in a grounded metal junction box.

This outlet is designed with a shallow body design for maximum wiring room in the junction box. Featuring washer-type break-off plaster ears, this receptacle is designed to perfectly fit any installation type while preventing floating installations.

Available in White, Light Almond, and Black.

Country	USA
Brand	ENERLITES
Manufacturer	ENERLITES
Binding	Tools & Home Improvement
ItemPartNumber	61580-TR-BK-10PCS
Model	61580-TR-BK-10PCS
Color	Black
Size	Outlet
UnitCount	10
UPCs	883951424367
EANs	0883951424367
ReleaseDate	0000-00-00

ENERLITES Tamper-Resistant Child Safe Duplex Receptacle Outlet, Residential Grade, 3-Wire, Self-Grounding, 2-Pole, 15A 125V, UL Listed, 61580-TR-BK, Black (10 Pack)
