ESPixelStick - Wireless DMX Pixel Controller Kit

Sold Out / Out of Stock

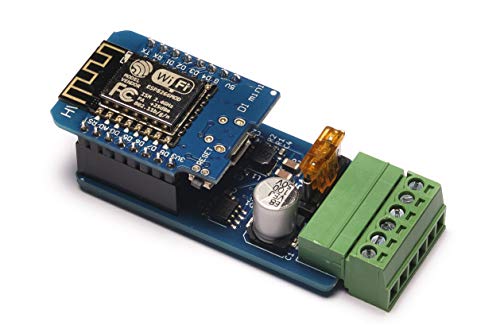

ESPixelStick - Wireless DMX Pixel Controller Kit
- MUST BE PROGRAMMED - Firmware is open source and available on GitHub with instructions on the Forkineye website.
- Supports sACN DMX (E1.31) and DDP (Distributed Display Protocol) over 802.11b/g/n Networks
- Controls up to 4 Universes of Pixel data - 680 WS2811 / WS2812 Pixels or 63 GECE Pixels
- Controls 1 Universe of DMX serial devices with on board DMX512 support
- Can be powered with 5V-24V DC
The ESPixelStick is an E1.31 WiFi pixel controller built around the ESP8266 in an Arduino environment. Please note that this item is a kit and requires programming by the end user. The ESPixelStick supports up to four universes of WS2811 pixels on a single output, or up to 63 GECE Pixels. The firmware is open source, available here. Once connected to your WiFi network, further configuration can be done via the embedded web server. The controller is small enough to fit inside 1â€³ thin wall PVC, allowing you to embed the controller next to your element eliminating issues of long pixel runs. The ESPixelStick V2 is provided in kit form, with all components pre-soldered. Full instructions for programming and usage can be found on forkineye.com.
Country USA
Brand Forkineye
Manufacturer Forkineye
Binding Electronics
ItemPartNumber ESPSV3
Color Blue
UPCs 195893832781
EANs 0195893832781
ReleaseDate 0000-00-00
